Inconel 601 Stud Bolt

Alloy 601 Double End Stud Bolt, Inconel 601 Industrial Stud Bolts, Alloy 601 Stud Bolts, ASTM B166 Inconel 601 Studs, Inconel® Alloy 601 Studs Price in India.

Bagoda Steel is a renowned distributor and supplier of Inconel Alloy 601 Stud Bolts, which is broadly utilized in warmness exchangers. It is classed relying at the yield strength and allowable ranges of the factors nitrogen, iron, carbon, and oxygen. It is frequently utilized in military applications, clinical devices, aircraft, spacecraft, surprisingly harassed additives inclusive of connecting rods on high priced sports activities motors and a few top class sports activities system and purchaser electronics. Inconel Alloy UNS N06601 Stud Bolts is pressure relived through preserving at 1004 Degree F to 1103 Degree F (540 Degree C to 595 Degree C) for 15 mins to 30 mins, after which air cool. Continuous provider temperatures in these stud bolts can attain as much as 800 Degree F with occasional, intermittent provider at a thousand Degree F.

Industrial Product

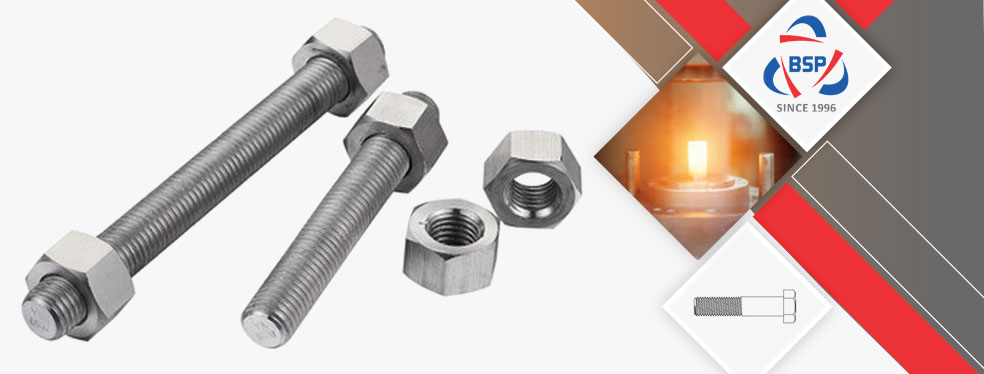

Inconel 601 Stud Bolts

Inconel 601 Single End Stud Bolt, Inconel® Alloy 601 Stud Stockist, Nickel Alloy 601 Full Threaded Stud Bolt, Alloy 601 Tap End Stud Bolts, 2.4851 Tie Rods, Alloy 601 Tie Rods, UNS N06601 Half Thread Stud Bolts Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Inconel Alloy WNR 2.4851 Stud Bolts gives best strength to weight ratio of any corrosion resistant material. It is likewise utilized in Chemical processing, Dimensional solid anodes, Chlorate production, Desalination, Architecture, etc. In the bulk of these and different engineering applications, it has changed heavier, much less serviceable or much less cost - effective materials. It includes a small quantity of palladium, in which this small quantity sincerely provides to the extent of corrosion resistance within the alloy itself, specifically within the presence of acids. It gives stronger corrosion resistance that is in addition a surprisingly long lasting alloy that gives lots of strength at excessive temperatures.

It is proof against erosion or impacts, and additionally famous good strength, welding and forming characteristics. Nickel Alloy 601 Stud Bolts is frequently utilized in chemical processing and storage – inclusive of for containers, ducting, pumps, warmness exchangers, valves, fittings and auxiliary system. It is maximum proof against corrosion in lowering acids, in which in addition it has first-rate weldability and fabricability. It is usually supplied within the annealed condition, in which maximum of the applications of this grade are within the chemical industries. The mechanical properties of this commercially natural alloy are in truth managed through “alloying” to diverse ranges of oxygen and nitrogen to obtain strength level.

Material Specification Chart of Inconel 601 Stud Bolt

Specification ASTM F468,  B166 / ASME SF468, SB166
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Stud Bolt UNF, BSW, BSF, METRIC, UNC, or as required
Standard DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Types Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Stud Bolts Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Stud Bolts IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating

Various Types Of Inconel 601 Stud Bolt

Inconel 601 Double Ended Stud Bolt
Inconel 601 Double Ended Stud Bolt
  • UNS N06601 Double End Studs
  • ASME SB166 Inconel Alloy 601 Dual Threaded Stud
  • 2.4851 Double End Stud
  • Alloy 601 Double Ended Stud Bolt
  • ASTM B166 Inconel 601 Double Ended Stud Bolt
  • Inconel 601 Double Ended Wheel Stud
Inconel 601 Stud Bolt
Inconel 601 Stud Bolt
  • Alloy 601 Stud Bolts
  • ASTM B166 Inconel 601 Stud Bolts
  • 2.4851 Stud Bolt
  • ASME SB166 Inconel Alloy 601 Stud Bolts
  • UNS N06601 Stud Bolts
  • Nickel Alloy 601 Stud Bolts
Inconel 601 Stud
Inconel 601 Stud
  • ASME SB166 Inconel Alloy 601 Stud
  • Inconel 601 Weld Studs
  • UNS N06601 Dowel Studs
  • ASTM B166 Inconel 601 Clinch Stud
  • 2.4851 Stud
  • Alloy 601 Studs
Inconel 601 Flush Head Stud
Inconel 601 Flush Head Stud
  • ASME SB166 Inconel Alloy 601 Self Clinch Flush Head Stud
  • UNS N06601 Flush Head Clinch Studs
  • 2.4851 Flush Head Studs
  • Alloy 601 Flush Head Stud
  • Inconel 601 Self Clinching Stud
  • ASTM B166 Inconel 601 Flush Head Self Clinching Studs
Inconel 601 Threaded Rods
Inconel 601 Threaded Rod
  • Alloy 601 Fully Threaded Rod
  • Alloy 601 Threaded Rods
  • 2.4851 Threaded Rods
  • UNS N06601 Threaded Stud
  • ASTM B166 Inconel 601 M5 Threaded Rod
  • ASME SB166 Inconel Alloy 601 Threaded Rods
Inconel 601 Single End Stud Bolt
Inconel 601 Single End Stud Bolt
  • UNS N06601 Single Ended Threaded Stud
  • ASTM B166 Inconel 601 Single Ended Stud Bolt
  • Alloy 601 M6 Single End Stud
  • Alloy 601 Single End Studs
  • 2.4851 Single Ended Stud Bolt
  • ASME SB166 Inconel Alloy 601 Single Ended Stud Bolt

Equivalent Grades of Inconel 601 Stud Bolts

STANDARD WERKSTOFF NR. UNS JIS BS AFNOR GOST EN
Inconel 601 2.4851 N06601 NCF 601 NA 49 NC23FeA XH60BT NiCr23Fe
Stud Bolts Dimensions

View Size Table Of Inconel 601 Stud Bolts, We have Global sales network for Inconel 601 Stud Bolts, Wide Stockist Of Werkstoff No 2.4851 Tap End Stud Bolts, Double End Stud Bolts In India.

Size Chart of Inconel 601 Stud Bolts

 Class 150 Flanges ASME B16.5 (Stud bolt sizes) Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 1/2 2 3/8 5/8 4 1/2 2 1/4 –
3/4 3 7/8 2 3/4 5/8 4 1/2 2 1/2 –
1 4 1/4 3 1/8 5/8 4 1/2 2 1/2 3
1 1/4 4 5/8 3 1/2 5/8 4 1/2 2 3/4 3 1/4
1 1/2 5 3 7/8 5/8 4 1/2 2 3/4 3 1/4
2 6 4 3/4 3/4 4 5/8 3 1/4 3 3/4
2 1/2 7 5 1/2 3/4 4 5/8 3 1/2 4
3 7 1/2 6 3/4 4 5/8 3 1/2 4
3 1/2 8 1/2 7 3/4 8 5/8 3 1/2 4
4 9 7 1/2 3/4 8 5/8 3 1/2 4
5 10 8 1/2 7/8 8 3/4 3 3/4 4 1/4
6 11 9 1/2 7/8 8 3/4 4 4 1/2
8 13 1/2 11 3/4 7/8 8 3/4 4 1/4 4 3/4
10 16 14 3/4 1 12 7/8 4 1/2 5
12 19 17 1 12 7/8 4 3/4 5 1/4
14 21 18 3/4 1 1/8 12 1 5 1/4 5 3/4
16 23 1/2 21 1/4 1 1/8 16 1 5 1/4 5 3/4
18 25 22 3/4 1 1/4 16 1 1/8 5 3/4 6 1/4
20 27 1/2 25 1 1/4 20 1 1/8 6 1/4 6 3/4
24 32 29 1/2 1 1/4 20 1 1/4 6 3/4 7 1/4
Class 300 Flanges ASME B16.5 Length of Stud Bolts
NPS Outside Diameter of Flange The diameter of Bolt Circle The diameter of Bolt Holes Number of Bolts Diameter of Bolts Raised Face 0.06 in Ring Joint
1/2 3 3/4 2 5/8 5/8 4 1/2 2 1/2 3
3/4 4 5/8 3 1/4 3/4 4 5/8 3 3 1/2
1 4 7/8 3 1/2 3/4 4 5/8 3 3 1/2
1 1/4 5 1/4 3 7/8 3/4 4 5/8 3 1/4 3 3/4
1 1/2 6 1/8 4 1/2 7/8 4 3/4 3 1/2 4
2 6 1/2 5 3/4 8 5/8 3 1/2 4
2 1/2 7 1/2 5 7/8 7/8 8 3/4 4 4 1/2
3 8 1/4 6 5/8 7/8 8 3/4 4 1/4 4 3/4
3 1/2 9 7 1/4 7/8 8 3/4 4 1/4 5
4 10 7 7/8 7/8 8 3/4 4 1/2 5
5 11 9 1/4 7/8 8 3/4 4 3/4 5 1/4
6 12 1/2 10 5/8 7/8 12 3/4 4 3/4 5 1/2
8 15 13 1 12 7/8 5 1/2 6
10 17 1/2 15 1/4 1 1/8 16 1 6 1/4 6 3/4
12 20 1/2 17 3/4 1 1/4 16 1 1/8 6 3/4 7 1/4
14 23 20 1/4 1 1/4 20 1 1/8 7 7 1/2
16 25 1/2 22 1/2 1 3/8 20 1 1/4 7 1/2 8
18 28 24 3/4 1 3/8 24 1 1/4 7 3/4 8 1/4
20 30 1/2 27 1 3/8 24 1 1/4 8 8 3/4
24 36 32 1 5/8 24 1 1/2 9 10

Check available Sizes of ASME SB 166 Inconel 601 Stud Bolt, Ask For Ready Stock of UNS N06601 Stud Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Alloy 601 Stud Bolts

Diameter Diameter in mm Diameter in inch Nut Sizes
M12 12 0.4724 19
M10 10 0.3937 17
M14 14 0.5512 22
M18 18 0.7087 27
M16 16 0.6299 24
M20 20 0.7874 30
M24 24 0.9449 36
M22 22 0.8661 32
M27 27 1.063 41
M33 33 1.2992 50
M30 30 1.1811 46
M36 36 1.4173 55
M42 42 1.6535 65
M39 39 1.5354 60
M45 45 1.7717 70
M52 52 2.0472 80
M48 48 1.8898 75
M56 56 2.2047 85
M64 64 2.5197 95
M60 60 2.3622 90
M68 68 2.6772 100
M76 76 2.9921 110
M72 72 2.8346 105
M80 80 3.1496 115
M90 90 3.5433 130
M85 85 3.3464 120
M100 100 3.937 145
M160 160 6.2992 230
M125 125 4.9212 180
M110 110 4.3307 155
M140 140 5.5118 200

Alloy 601 Stud Bolt Torque Chart

Flange Size B16.5 Class 150 RF/ Ring Gaskets B16.5 Class 150 FF/ Full Face Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence Torque / Round (ft-lbs) Stud Bolts Tighten Sequence
1st 2nd Final Dwg/No. Bolt Size 1st 2nd Final Dwg*/No. Bolt Size
1/2″ 10 20 30 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
3/4″ 13 27 40 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1″ 15 30 50 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/4″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
1-1/2″ 20 40 60 4-bolt 1/2″ 20 40 60 4-bolt 1/2″
2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
2-1/2″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3″ 40 80 120 4-bolt 5/8″ 40 80 120 4-bolt 5/8″
3-1/2″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
4″ 40 80 120 8-bolt 5/8″ 40 80 120 8-bolt 5/8″
5″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
8″ 60 120 200 8-bolt 3/4″ 60 120 200 8-bolt 3/4″
10″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
12″ 95 190 320 12-bolt 7/8″ 95 190 320 12-bolt 7/8″
14″ 147 294 490 12-bolt 1″ 147 294 490 12-bolt 1″
16″ 147 294 490 16-bolt 1″ 147 294 490 16-bolt 1″
18″ 213 426 710 16-bolt 1-1/8″ 213 426 710 16-bolt 1-1/8″
20″ 213 426 710 20-bolt 1-1/8″ 213 426 710 20-bolt 1-1/8″
24″ 300 601 1,000 20-bolt 1-1/4″ 300 601 1,000 20-bolt 1-1/4″

Flange Size B16.5 Class 300 RF/ Ring Gaskets
Torque / Round (ft-lbs) Stud Bolts Tighten Sequence*
1st 2nd Final Dwg/No. Stud Bolts Size
1/2″ 10 20 30 4-bolt 1/2″
3/4″ 15 30 50 4-bolt 5/8″
1″ 21 42 70 4-bolt 5/8″
1-1/4″ 30 60 100 4-bolt 5/8″
1-1/2″ 45 90 150 4-bolt 3/4″
2″ 33 66 110 8-bolt 5/8″
2-1/2″ 42 84 140 8-bolt 3/4″
3″ 60 120 200 8-bolt 3/4″
3-1/2″ 60 120 200 8-bolt 3/4″
4″ 60 120 200 8-bolt 3/4″
5″ 60 120 200 8-bolt 3/4″
6″ 60 120 200 12-bolt 3/4″
8″ 95 190 320 12-bolt 7/8″
10″ 147 294 490 16-bolt 1″
12″ 213 426 710 16-bolt 1-1/8″
14″ 195 390 650 20-bolt 1-1/8″
16″ 273 546 910 20-bolt 1-1/4″
18″ 300 601 1,000 24-bolt 1-1/4″
20″ 300 601 1,000 24-bolt 1-1/4″
24″ 465 930 1,550 24-bolt 1-1/2″

Weight Chart Of Inconel 601 Stud Bolt

Weight Imperial
STUD BOLT LENGTH (in inches) 1/2 5/8 3/4 7/8 1 1 1/8 1 1/4 1.3/8 1 1/2 1.5/8 1.3/4 1 7/8
2.1/2 10.8
2.3/4 11.6 19.8
3.1/4 12.4 21 32.4
3.1/2 13.2 22.2 34.3 50
4 14 23.4 36.2 52.6 71.8
4.1/2 14.8 24.6 38.1 55.2 75.2 102
4.3/4 15.6 25.8 40 57.8 78.6 106 137
5 16.4 27 41.9 60.4 82 111 142 179
5.1/2 17.2 28.2 43.8 63 85.4 115 147 186 234
6 18 29.4 45.7 65.6 88.8 119 153 193 242 289
6.1/4 18.8 30.6 47.6 68.2 92.2 123 158 200 250 298 263
6.1/2 19.6 32.3 49.5 70.8 95.6 128 164 206 258 308 374 437
7 20.4 33.5 50.8 73.4 99 132 169 213 266 317 385 449
7.1/2 21.2 34.8 52.7 75.5 103 136 174 220 275 326 396 462
8 22 36.1 54.5 78 106 141 180 226 283 336 407 475
8.1/4   37.3 56.3 80.5 108 145 185 233 291 345 418 488
8.3/4   38.6 58.1 83.1 112 149 191 240 299 354 429 500
9   39.8 60 85.6 115 153 196 246 307 364 440 513
9.1/2   41.1 61.8 88.2 118 158 201 253 316 373 451 526
10     63.7 90.7 122 162 206 260 324 382 463 538
10/1.4       93.3 125 166 212 267 332 391 474 551
1.0.1/2         128 171 217 273 340 401 485 564
11         132 175 223 279 345 410 496 576
11.1/2         135 179 228 285 350 419 507 589
12         138 184 233 292 358 429 518 602
Weight Of Metric Studs Bolt
STUD BOLT LENGTH (in mm) M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
60 5,6 8,1 12 15,6
70 6,1 8,9 13 16,9 23,7
80 6,6 9,6 14 18,2 25,4 32,5
90 7,1 10,3 15 19,6 27,1 34,5 45,5
100 7,6 11 16 21 28,8 36,7 47,2 54,2
110 8,1 11,7 17 22,2 30,4 38,7 48,3 58,2 80
120 8,6 12,4 18 23,6 32,1 40,7 50,9 60,2 84,7 107
130 9,1 13,2 19 24,9 33,7 42,8 53,4 63,2 88,6 111 141
140 9,6 14,2 20 26,2 35,4 44,9 55,9 66,2 92,4 116 147 185
150 10,1 14,9 20,8 27,5 36,9 46,9 58,5 69,2 96,3 121 153 192 237
160 10,6 15,6 21,8 29,1 38,6 49 61 72,2 100,1 126 159 199 245
170   16,4 22,8 30,4 40,2 51,1 63,5 75,2 104 130 165 206 253
180     23,8 31,8 41,9 52,3 66,1 78,1 108 135 171 213 261
190       33,1 43,5 54,4 68,4 81,1 112 140 176 219 269
200       34,5 45,2 56,2 71 84 116 144 182 226 278
210       35,8 46,8 58,5 73,5 88,4 120 149 188 233 286
220       37,1 48,4 60,6 76,1 91,4 124 154 194 240 294
230       38,5 50,1 62,6 78,6 94,4 127 159 201 247 302
240       39,8 51,7 64,7 81,2 97,4 130,9 164 208 253 310
250       41,1 53,4 66,8 83,7 100,4 134,8 172 214 260 319
260         55 68,8 86,3 103,4 138,6 177 220 267 327
270         56,6 70,9 88,8 106,4 142,5 182 224 274 335
280         58,3 73 91,4 109,4 146,3 187 230 281 343
290           75 93,9 112,4 150,1 192 236 291 360
300           77,1 96,5 115,4 154 196 241 298 368
320             101,6 121,3 161,7 206 253 312 380
340               127,3 169,4 215 265 326 395
360               133,3 177,1 224 276 340 411
380                 184,8 234 288 353 428
400                 192,5 243 299 367 444
420                   252 311 381 460
440                   262 322 394 477
460                   271 334 408 493
480                   281 345 422 509
500                   290 357 436 526

Ready Stock Inconel 601 Stud Bolts

  • Inconel 601 Partial Threaded Stud Bolt Stockholder
  • Alloy 601 Drywall Stud
  • Inconel Alloy 601 Tap End Stud Bolts
  • ASTM B166 Inconel 601 Double End Stud Bolts
  • 2.4851 Continuous Thread Stud Bolt
  • ASTM B166 Inconel 601 Double Ended Stud
  • Inconel® Alloy 601 Double End Stud Bolts
  • Inconel® Alloy 601 Stud Bolt
  • Alloy 601 Tie Rods
  • Nickel Alloy 601 Stud Bolt
  • Inconel Alloy 601 Flush Head Studs Stockist
  • Inconel 601 Heavy Stud Bolt
  • Inconel Alloy 601 Tap End Stud Bolts
  • DIN 2.4851 Full Threaded Stud Bolt
  • Inconel 601 Heavy Stud Bolt
  • Inconel® Alloy 601 M16 Stud Bolt
  • ASTM B166 Inconel 601 Double Ended Stud
  • Alloy 601 Stud Bolts
  • Alloy 601 Single End Stud Bolt
  • Alloy 601 Continuous Thread Stud Bolt
  • JIS NCF 601 Stud Bolts
  • ASME SB166 Inconel 601 Studs
  • Inconel 601 Threaded Rod
  • 601 Inconel Stud Bolts With Reduced Shank
  • Alloy 601 Studs
  • Inconel® Alloy 601 Double Ended Stud Manufacturer
  • Inconel 601 Threaded Studs
  • Inconel 601 Threaded Studs
  • Alloy 601 Double Ended Stud
  • Inconel 601 High Pressure Stud Bolt
  • 601 Inconel Threaded Studs
  • Nickel Alloy 601 Tie Bars
  • Inconel Alloy 601 Industrial Stud Bolts
  • Nickel Alloy 601 Flush Head Studs
  • Inconel 601 Threaded Rod Exporter
  • UNS N06601 Stud Bolt
  • Alloy 601 Industrial Stud Bolts Supplier in Mumbai
  • ASTM B166 Inconel 601 Stud Bolts
  • 601 Inconel Wheel Lug Stud Bolt
  • Inconel Alloy® 601 Threaded Stud Bolts
  • Inconel Alloy 601 Continuous Thread Stud Bolt
  • Inconel 601 Continuous Thread Stud Bolt
  • Nickel Alloy 601 Threaded Stud Bolt
  • 601 Inconel Metric Thread Stud Bolt Manufacturer
  • Nickel Alloy 601 Full Threaded Stud Bolt Distributor
  • Inconel 601 Half Thread Stud Bolt
  • Inconel 601 Weld Studs
  • Inconel 601 Tie Rods

Inconel 601 Stud Bolts Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 601 0.10 max 1.0 max 0.5 max 0.015 max 1.0 max Balance 58.0 – 63.0 21.0 – 25.0

Alloy 601 Stud Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 601 8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %

Export Destinations For Inconel 601 Stud Bolts

industry
