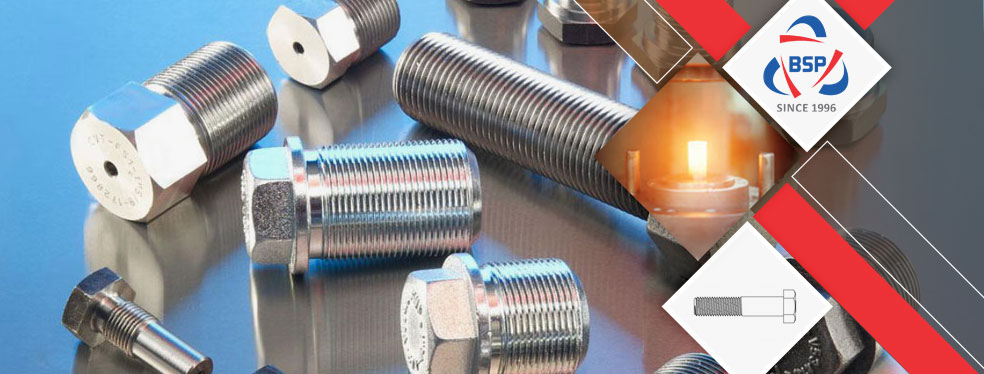

Inconel 601 Fasteners, Alloy 601 Bolts, Inconel Alloy 601 Nuts Manufacturer

2.4851 Nuts, Alloy 601 Screws In Italy, UNS N06601 Allen Cap Screw, Alloy 601 Anchor Bolts, Inconel® Alloy 601 Carriage Bolts Stockist, Nickel Alloy 601 Threaded Rod In Philippines, Inconel 601 Flat Washers, Inconel 601 Hex Bolts Supplier in Mumbai, India.

It is regularly used for kitchen sinks and within the frames of eyeglasses. It has additionally been used for firebox remains in fire-tube boilers. Regulators for reactive cylinder gases like hydrogen chloride shape any other example, in which PTFE isn't always an appropriate alternative while excessive shipping pressures are required. These will on occasion encompass a manifold and faucets previous to the regulator that permit the regulator to be flushed with a dry, inert fueloline after use to similarly guard the equipment. While steam strength changed into extensively used, Inconel Alloy WNR 2.4851 Fasteners changed into marketed as being suited to be used in superheated steam systems.

Oilfield applications encompass the use of this alloy as drill collars. It is now not often used, generally changed via way of means of non-magnetic stainless steels. It is likewise used as a protecting binding material at the outdoor of western formed stirrups. It is utilized in movement photo movie processing. Its staple splices are perfect for resisting corrosion from use in continuous-run photochemical tanks. Nickel Alloy 601 Fasteners indicates excessive strength and superb corrosion resistance in a variety of acidic and alkaline environments and is mainly appropriate for lowering situations. It commonly unearths utility in marine engineering, chemical and hydrocarbon processing, warmth exchangers, valves, and pumps.

Material Specification Chart of Inconel 601 Fasteners

Standard	ASTM B166, ASME SB166
Size	M 02 to M 33
Length	3 mm to 200 mm
Threads:	METRIC, BSW, BSF, UNC, UNF or as required
Standard:	DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute ANSI B 18.2.4 2M ANSI B 28.2.4 1M Stud Bolt length are defined in ASME B16.5 standard Hex nuts are defined in ASME B18.2.2 ASME B18.5 BS en iso 3506 DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer	Up to M36 / 1-1/2” Dia, up to 1100mm lg CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia	M6 to M64 (1/4" - 2.5")
Length	12 MM - 500 MM (Upto 20 Inch)
IS	1363, 1364
DIN	931, 933
ISO	ISO 3506
Form of:	Hex, Square, Round, Threading as per Gauge Etc.
Head Drive:	Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate:	Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing:	Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process	M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types	Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

ANSI and/or ASME Standards (inch series)

ASME B18.1.1	Small Solid Rivets	ASME B18.8.1	Clevis Pins and Cotter Pins
ASME B18.1.2	Large Rivets	ASME B18.8.2	Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins
ASME B18.2.1	Square and Hex Bolts and Screws	ASME B18.9	Plow Bolts
ASME B18.2.2	Square and Hex Nuts	ASME B18.10	Track Bolts and Nuts
ASME B18.2.6	Fasteners for use in Structural Applications	ASME B18.11	Miniature Screws
ASME B18.3	Socket Cap, Shoulder and Set Screws	ASME B18.13	Screws and Washer Assemblies (Sems)
ASME B18.5	Round Head Bolts	ASME B18.15	Forged Eyebolts
ASME B18.6.2	Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws	ASME B18.17	Wing Nuts, Thumb Screws and Wing Screws
ASME B18.6.3	Machine Screws and Machine Screws Nuts	ASME B18.21.1	Lock Washers
ASME B18.6.4	Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws	ASME B18.22.1	Plain Washers
ASME B18.7	General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps	ASME B18.23.1	Beveled Washers

Various Types Of Inconel 601 Fasteners

Inconel 601 Bolts

Alloy 601 Hex Bolts In Indonesia
ASTM B166 Inconel 601 Bolts
ASME SB166 Inconel Alloy 601 Bolts
2.4851 Heavy Hex Bolts
UNS N06601 Flange Bolts
Inconel 601 Bolts In Malaysia

Inconel 601 Nuts

UNS N06601 Nuts
Inconel 601 Wing Nuts In Mexico
ASTM B166 Inconel 601 Nuts
Alloy 601 Hex Nuts In Philippines
2.4851 Heavy Hex Nuts
ASME SB166 Inconel Alloy 601 Nuts

Inconel 601 Screw

Inconel 601 Screw In Japan
UNS N06601 Socket Set Screws
ASTM B166 Inconel 601 Screw
Alloy 601 Allen Cap Screw In Italy
ASME SB166 Inconel Alloy 601 Screw
2.4851 Hex Cap Screws

Inconel 601 Washers

Alloy 601 Flat Washer In Spain
ASME SB166 Inconel Alloy 601 Washers
UNS N06601 Lock Washers
ASTM B166 Inconel 601 Washers
Inconel 601 Washers In Kuwait
2.4851 Beveled Washers

Inconel 601 Threaded Rods

Inconel 601 Threaded Rods In Singapore
UNS N06601 Threaded Rods
ASME SB166 Inconel Alloy 601 Threaded Rods
2.4851 Threaded Rods
ASTM B166 Inconel 601 Threaded Rods
Alloy 601 Threaded Rods In Indonesia

Inconel 601 Stud Bolts

Inconel 601 Tie Rods In Italy
2.4851 Stud Bolts
Alloy 601 Stud Bolts In Mexico
UNS N06601 Stud Bolts
ASME SB166 Inconel Alloy 601 Stud
ASTM B166 Inconel 601 Stud Bolts

Inconel 601 Anchor Bolts

ASME SB166 Inconel 601 Self Tapping Anchor
ASTM B166 Inconel 601 Anchor Bolts
Inconel 601 Anchor Bolts In Japan
UNS N06601 Concrete Anchors
2.4851 J Anchor Bolts
Inconel 601 Wedge Anchor Bolt In Indonesia

Equivalent Grades of Inconel 601 Fasteners

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 601	2.4851	N06601	NCF 601	NA 49	XH60BT	NC23FeA	NiCr15Fe

View Size Table Of Inconel 601 Fasteners, We have Global sales network for Inconel 601 Stud Bolts, Wide Stockist Of Werkstoff No 2.4851 Nuts, Bolts, Washers In India.

Size Chart of Inconel 601 Bolts

Nominal or Basic Product Diameter		E		F			G		H			J	LT (Thread Length)		Y
Nominal or Basic Product Diameter		Body Diameter		Width Across Flats			Width Across Corners		Head Height			Wrenching Height	For Screw Lengths	For Screw Lengths	Transition Thread Length
1/4	0.25	0.25	0.245	7/16	0.438	0.428	0.505	0.488	5/32	0.163	0.150	0.106	0.750	1.000	0.250
5/16	0.3125	0.3125	0.3065	1/2	0.500	0.489	0.577	0.557	13/64	0.211	0.195	0.140	0.875	1.125	0.278
3/8	0.375	0.375	0.369	9/16	0.562	0.551	0.650	0.628	15/64	0.243	0.226	0.160	1.000	1.250	0.312
7/16	0.4375	0.4375	0.4305	5/8	0.625	0.612	0.722	0.698	9/32	0.291	0.272	0.195	1.125	1.375	0.357
1/2	0.5	0.5	0.493	3/4	0.750	0.736	0.866	0.840	5/16	0.323	0.302	0.215	1.250	1.500	0.385
9/16	0.5625	0.5625	0.5545	13/16	0.812	0.798	0.938	0.910	23/64	0.371	0.348	0.250	1.375	1.625	0.417
5/8	0.625	0.625	0.617	15/16	0.938	0.922	1.083	1.051	25/64	0.403	0.378	0.269	1.500	1.750	0.455
3/4	0.75	0.75	0.741	1-1/8	1.125	1.100	1.299	1.254	15/32	0.483	0.455	0.324	1.750	2.000	0.500
7/8	0.875	0.875	0.866	1-5/16	1.312	1.285	1.516	1.465	35/64	0.563	0.531	0.378	2.000	2.250	0.556
1	1	1	0.99	1-1/2	1.500	1.469	1.732	1.675	39/64	0.627	0.591	0.416	2.250	2.500	0.625
1-1/8	1.125	1.125	1.114	1-11/16	1.688	1.631	1.949	1.859	11/16	0.718	0.658	0.461	2.500	2.750	0.714
1-1/4	1.25	1.25	1.239	1-7/8	1.875	1.812	2.165	2.066	25/32	0.813	0.749	0.530	2.750	3.000	0.714
1-1/2	1.5	1.5	1.488	2-1/4	2.250	2.175	2.598	2.480	15/16	0.974	0.902	0.640	3.250	3.500	0.833

Check available Sizes of ASME SB 166 Inconel 601 Stud Bolt, Ask For Ready Stock of UNS N06601 Fasteners in Mumbai, India.

BAGODA

Quick Contact

Call Us

+91 22 - 66151721

Need Help? Send us Email

sales@bagodasteelproject.com

Inconel 601 Washer Weight & Dimensions

Bolt Size	A	B	C	Weight (lbs.) Per 100 Pieces
Bolt Size	ID	OD	Thickness	Weight (lbs.) Per 100 Pieces
1/2	9/16	13/8	0.109	4
5/8	11/16	13/4	0.134	8
3/4	13/16	2	0.148	11
7/8	15/16	21/4	0.165	15
1	11/16	21/2	0.165	19
11/8	11/4	23/4	0.165	22
11/4	13/8	3	0.165	26
13/8	11/2	31/4	0.180	33
11/2	15/8	31/2	0.180	38
15/8	13/4	33/4	0.180	43
13/4	17/8	4	0.180	50
17/8	2	41/4	0.180	57
2	21/8	41/2	0.180	63
21/4	23/8	43/4	0.220	83
21/2	25/8	5	0.238	96
23/4	27/8	51/4	0.259	110
3	31/8	51/2	0.284	130

Inconel 601 Stud Bolt Size Chart

Class 150 Flanges ASME B16.5 (Stud bolt sizes)						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 1/2	2 3/8	5/8	4	1/2	2 1/4	–
3/4	3 7/8	2 3/4	5/8	4	1/2	2 1/2	–
1	4 1/4	3 1/8	5/8	4	1/2	2 1/2	3
1 1/4	4 5/8	3 1/2	5/8	4	1/2	2 3/4	3 1/4
1 1/2	5	3 7/8	5/8	4	1/2	2 3/4	3 1/4
2	6	4 3/4	3/4	4	5/8	3 1/4	3 3/4
2 1/2	7	5 1/2	3/4	4	5/8	3 1/2	4
3	7 1/2	6	3/4	4	5/8	3 1/2	4
3 1/2	8 1/2	7	3/4	8	5/8	3 1/2	4
4	9	7 1/2	3/4	8	5/8	3 1/2	4
5	10	8 1/2	7/8	8	3/4	3 3/4	4 1/4
6	11	9 1/2	7/8	8	3/4	4	4 1/2
8	13 1/2	11 3/4	7/8	8	3/4	4 1/4	4 3/4
10	16	14 3/4	1	12	7/8	4 1/2	5
12	19	17	1	12	7/8	4 3/4	5 1/4
14	21	18 3/4	1 1/8	12	1	5 1/4	5 3/4
16	23 1/2	21 1/4	1 1/8	16	1	5 1/4	5 3/4
18	25	22 3/4	1 1/4	16	1 1/8	5 3/4	6 1/4
20	27 1/2	25	1 1/4	20	1 1/8	6 1/4	6 3/4
24	32	29 1/2	1 1/4	20	1 1/4	6 3/4	7 1/4
Class 300 Flanges ASME B16.5						Length of Stud Bolts
NPS	Outside Diameter of Flange	The diameter of Bolt Circle	The diameter of Bolt Holes	Number of Bolts	Diameter of Bolts	Raised Face 0.06 in	Ring Joint
1/2	3 3/4	2 5/8	5/8	4	1/2	2 1/2	3
3/4	4 5/8	3 1/4	3/4	4	5/8	3	3 1/2
1	4 7/8	3 1/2	3/4	4	5/8	3	3 1/2
1 1/4	5 1/4	3 7/8	3/4	4	5/8	3 1/4	3 3/4
1 1/2	6 1/8	4 1/2	7/8	4	3/4	3 1/2	4
2	6 1/2	5	3/4	8	5/8	3 1/2	4
2 1/2	7 1/2	5 7/8	7/8	8	3/4	4	4 1/2
3	8 1/4	6 5/8	7/8	8	3/4	4 1/4	4 3/4
3 1/2	9	7 1/4	7/8	8	3/4	4 1/4	5
4	10	7 7/8	7/8	8	3/4	4 1/2	5
5	11	9 1/4	7/8	8	3/4	4 3/4	5 1/4
6	12 1/2	10 5/8	7/8	12	3/4	4 3/4	5 1/2
8	15	13	1	12	7/8	5 1/2	6
10	17 1/2	15 1/4	1 1/8	16	1	6 1/4	6 3/4
12	20 1/2	17 3/4	1 1/4	16	1 1/8	6 3/4	7 1/4
14	23	20 1/4	1 1/4	20	1 1/8	7	7 1/2
16	25 1/2	22 1/2	1 3/8	20	1 1/4	7 1/2	8
18	28	24 3/4	1 3/8	24	1 1/4	7 3/4	8 1/4
20	30 1/2	27	1 3/8	24	1 1/4	8	8 3/4
24	36	32	1 5/8	24	1 1/2	9	10

Ready Stock Inconel 601 Fasteners

Inconel 601 Lock Nut In Indonesia
Inconel 601 Wing Nuts In Malaysia
Nickel Alloy 601 Screws Distributor
Inconel Alloy® 601 Washers In Mexico
Inconel 601 Anchor Bolts
Nickel Alloy 601 Split / Lock Washer
Inconel Alloy 601 Stud Bolt In Philippines
Inconel® Alloy 601 Allen Cap Screw
Inconel Alloy 601 Threaded Rod In Japan
Inconel 601 Tooth Lock Washer
Inconel 601 Heavy Hex Nuts In Italy
ASTM B166 Inconel 601 Wing Nuts
Inconel 601 Self Locking Nuts
Alloy 601 Elevator Bolt
Alloy 601 Hexagonal Washer In Spain
601 Inconel Hex Set Screw Manufacturer
Alloy 601 Eye Bolts In Kuwait
Inconel 601 Square Nuts
ASME SB166 Inconel 601 Fender Washer
Alloy 601 T-Head Bolts In Singapore
Inconel 601 Dock Washer Stockholder
Alloy 601 Double Ended Stud
Inconel® Alloy 601 Hex Washers
Inconel 601 Machine Fasteners Exporter
Nickel Alloy 601 Hex Coupling Nut In Indonesia
Inconel 601 Bolts In Malaysia
601 Inconel Structural Bolts
Inconel 601 Hex Head Bolts In Mexico
601 Inconel Customized Washer
ASTM B166 Inconel 601 Nyloc Nuts
Alloy 601 Plain Washer Supplier in Mumbai
601 Inconel Acorn Nuts
Inconel 601 Fasteners In Japan
Nickel Alloy 601 Concrete Screw In Philippines
Inconel® Alloy 601 Tie Rods
601 Inconel Machine Bolt
UNS N06601 Fasteners
Inconel Alloy 601 Bolts In Italy
ASTM B166 Inconel 601 Fasteners
Inconel Alloy 601 Carriage Bolt Stockist
Alloy 601 Hex Head Bolt
Nickel Alloy 601 Hex Domed Cap Nuts
2.4851 Fasteners
Inconel Alloy 601 Socket Cap Screw
JIS NCF 601 Stud Bolts
Inconel 601 Heavy Hex Bolts In Spain
DIN 2.4851 Countersunk Washer
Inconel 601 Flange Bolt
Inconel® Alloy 601 Foundation Bolts Manufacturer
601 Inconel Ogee Washer In Kuwait
Inconel 601 Coupling Nut In Singapore
ASTM B166 Inconel 601 Flat Washers

Inconel 601 Chemical Composition

Grade	Ni	Fe	C	Mn	Si	Cu	Cr	S	Al
Inconel 601	61.5 min	14	0.05 max	1.0 max	0.50 max	1.0 max	21.0 - 25.0	0.015 max	1.0 – 1.7

Alloy 601 Fasteners Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1370-1425 ℃	550 min.	240 min.	30 %
