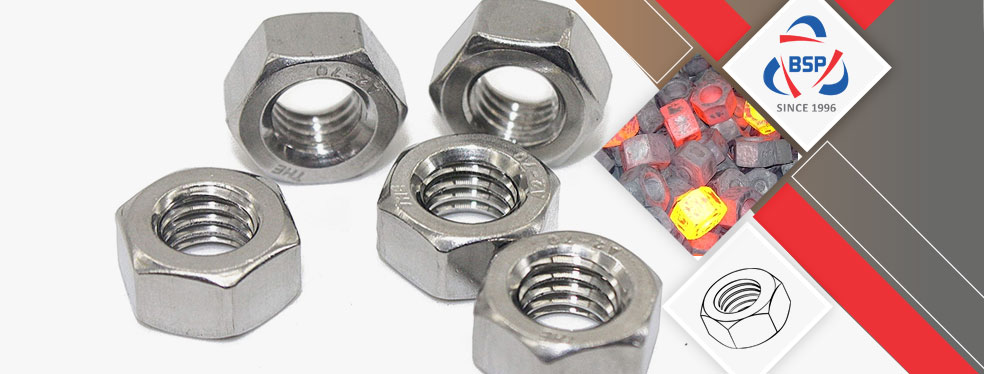

Titanium Alloy Gr 2 Hex Jam Nuts, Titanium Gr 2 Machine Hex Nut, Ti Alloy Gr 2 Hexagonal Nylon Lock Nut, UNS R50400 Hex Flange Nut, Titanium Alloy Gr 2 Finished Hex Nut Stockist, 3.7035 Hex Nuts, Ti Alloy Gr 2 Long Hex Nuts, Titanium Gr 2 Industrial Hex Nut Supplier in Mumbai, India.
Some applications require non-magnetic materials, which includes magnetic resonance imaging. Annealed austenitic stainless steels are typically non-magnetic, though work hardening can make cold-shaped austenitic stainless steels barely magnetic. Sometimes, if metal like Titanium UNS R50400 Hex Nuts is bent or cut, magnetism takes place alongside the brink of the chrome steel due to the fact the crystal shape rearranges itself.Galling, every now and then called cold welding is a shape of intense adhesive wear, which could arise whilst metallic surfaces are in relative movement to every different and beneath heavy pressure.
Titanium WNR 3.7035 Hex Nut sare especially prone to thread galling, even though different alloys that self-generate a protecting oxide floor movie, which include aluminum and titanium, also are susceptible. Under excessive contact-pressure sliding, this oxide may be deformed, broken, and eliminated from elements of the component, exposing the naked reactive metallic. When the surfaces are of the identical material, these uncovered surfaces can without problems fuse. Separation of the surfaces can bring about floor tearing or even entire seizure of metallic additives or fasteners. Galling may be mitigated with the aid of using the usage of dissimilar materials (bronze in opposition to steel) or the use of one-of-a-kind steels (martensitic in opposition to austenitic).
Material Specification Chart of Titanium Gr 2 Hex Nuts
Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
---|---|
Length | 3 mm to 200 mm |
Hex Nuts | UNF, BSW, BSF, METRIC, UNC, or as required |
Standard | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
Form | Hex, Threading, Square, Round as per Gauge Etc. |
Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
Certification | Dual Certified As per ASTM & ASME Codes |
Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
Head drive | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
Surface Coating | Ptfe Coated Nuts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
Finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide |
Various Types Of Titanium Gr 2 Hex Nuts

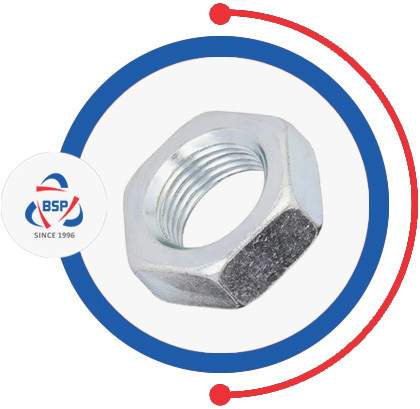

- 3.7035 Hex Jam Nuts
- Ti Alloy Gr 2 Hex Jam Nut
- Titanium Gr 2 Heavy Hex Jam Nuts
- Titanium Alloy Gr 2 Hex Jam Nut
- UNS R50400 Hex Jam Nuts

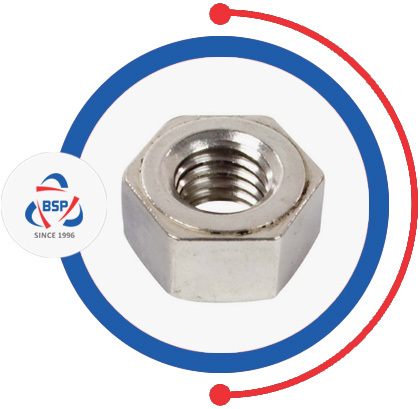

- 3.7035 Heavy Hex Nuts
- Titanium Gr 2 Heavy Hex Nuts
- Titanium Alloy Gr 2 Heavy Hex Nut
- UNS R50400 Heavy Hex Nuts
- Ti Alloy Gr 2 Heavy Hex Nut

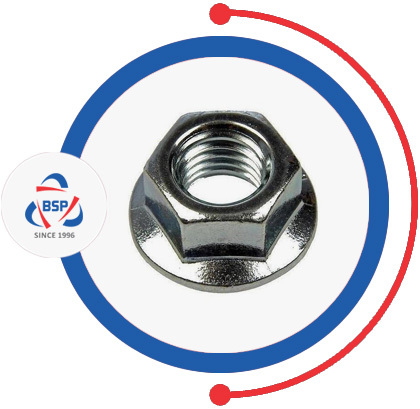

- UNS R50400 Hex Flange Nut
- Titanium Alloy Gr 2 Hex Flange Nut
- 3.7035 Hex Flange Nuts
- Titanium Gr 2 Hex Flange Nut
- Ti Alloy Gr 2 Flange Hex Nuts

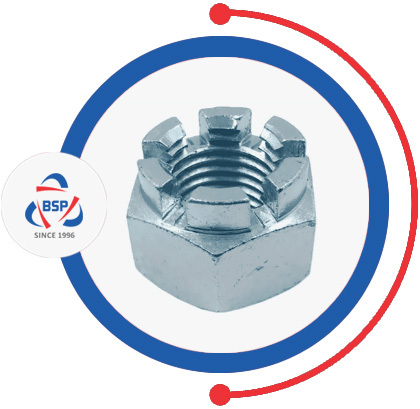

- 3.7035 Beveled Slotted Hex Nut
- Titanium Gr 2 Slotted Hex Nut
- Titanium Alloy Gr 2 Slotted Hex Nuts
- Ti Alloy Gr 2 Slotted Hex Nuts
- UNS R50400 Slotted Hex Nuts

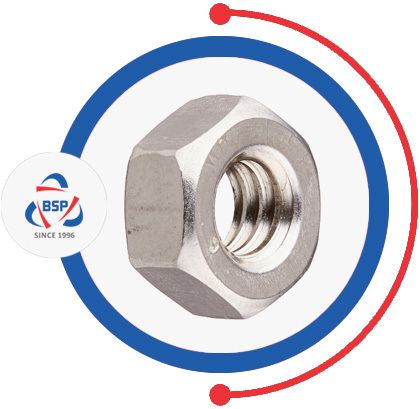

- Titanium Alloy Gr 2 Machine Hex Nut
- Ti Alloy Gr 2 Machine Hex Nut
- UNS R50400 Machine Hex Nuts
- 3.7035 Machine Hex Nuts
- Titanium Gr 2 Machine Hex Nuts
- Ti Alloy Gr 2 Long Hex Nuts
- 3.7035 Hex Coupling Nuts
- UNS R50400 Long Hex Nuts
- Titanium Gr 2 Coupling Hex Nuts
- Titanium Alloy Gr 2 Long Hex Nuts
Equivalent Grades of Titanium Gr 2 Hex Nuts
STANDARD | UNS | WERKSTOFF NR. |
Titanium Gr 2 | R50400 | 3.7035 |
View Size Table Of Titanium Gr 2 Hex Nuts, We have Global sales network for Titanium Alloy Gr 2 Heavy Hex Nuts, Wide Stockist Of Werkstoff No 3.7035 Hex Head Nuts, Industrial Hex Nuts In India.
Dimensions of Titanium Gr 2 Hex Nuts
Nominal Size |
Basic Major Diameter of Thread |
F | G | H | H1 | Maximum Runout of Bearing Surface to Thread Axis, FIM |
||||||
Width Across Flats |
Width Across Corners |
Thickness Hex Nuts |
Thickness Jam Nuts |
Hex Nuts | Hex Jam Nuts |
|||||||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Specified Proof Load |
||||
Up to 150,000 psi |
150,000 psi and Greater |
All Strength Levels |
||||||||||
1/4 | 0.2500 | 0.428 | 0.438 | 0.488 | 0.505 | 0.212 | 0.226 | 0.150 | 0.163 | 0.015 | 0.010 | 0.015 |
5/16 | 0.3125 | 0.489 | 0.500 | 0.557 | 0.577 | 0.258 | 0.273 | 0.180 | 0.195 | 0.016 | 0.011 | 0.016 |
3/8 | 0.3750 | 0.551 | 0.563 | 0.628 | 0.650 | 0.320 | 0.337 | 0.210 | 0.227 | 0.017 | 0.012 | 0.017 |
7/16 | 0.4375 | 0.675 | 0.688 | 0.768 | 0.794 | 0.365 | 0.385 | 0.240 | 0.260 | 0.018 | 0.013 | 0.018 |
1/2 | 0.5000 | 0.736 | 0.750 | 0.840 | 0.866 | 0.427 | 0.448 | 0.302 | 0.323 | 0.019 | 0.014 | 0.019 |
9/16 | 0.5625 | 0.861 | 0.875 | 0.982 | 1.010 | 0.473 | 0.496 | 0.301 | 0.324 | 0.020 | 0.015 | 0.020 |
5/8 | 0.6250 | 0.922 | 0.938 | 1.051 | 1.083 | 0.535 | 0.559 | 0.363 | 0.387 | 0.021 | 0.016 | 0.021 |
3/4 | 0.7500 | 1.088 | 1.125 | 1.240 | 1.299 | 0.617 | 0.665 | 0.398 | 0.446 | 0.023 | 0.018 | 0.023 |
7/8 | 0.8750 | 1.269 | 1.312 | 1.447 | 1.516 | 0.724 | 0.776 | 0.458 | 0.510 | 0.025 | 0.020 | 0.025 |
1 | 1.0000 | 1.450 | 1.500 | 1.653 | 1.732 | 0.831 | 0.887 | 0.519 | 0.575 | 0.027 | 0.022 | 0.027 |
1-1/8 | 1.1250 | 1.631 | 1.688 | 1.859 | 1.949 | 0.939 | 0.999 | 0.579 | 0.639 | 0.030 | 0.025 | 0.030 |
1-1/4 | 1.2500 | 1.812 | 1.875 | 2.066 | 2.165 | 1.030 | 1.094 | 0.687 | 0.751 | 0.033 | 0.028 | 0.033 |
1-3/8 | 1.3750 | 1.994 | 2.062 | 2.273 | 2.382 | 1.138 | 1.206 | 0.747 | 0.815 | 0.036 | 0.031 | 0.036 |
1-1/2 | 1.5000 | 2.175 | 2.250 | 2.480 | 2.598 | 1.245 | 1.317 | 0.808 | 0.880 | 0.039 | 0.034 | 0.039 |
1-5/8 | 1.6250 | 2.35 | 2.43 | 2.679 | 2.805 | 1.364 | 1.416 | 0.868 | 0.944 | 0.044 | 0.038 | 0.044 |
1-3/4 | 1.7500 | 2.538 | 2.625 | 2.893 | 3.031 | 1.460 | 1.540 | 0.929 | 1.009 | 0.048 | 0.041 | 0.048 |
1-7/8 | 1.8750 | 2.722 | 2.813 | 3.103 | 3.247 | 1.567 | 1.651 | 0.989 | 1.073 | 0.051 | 0.044 | 0.051 |
2 | 2.0000 | 2.900 | 3.000 | 3.306 | 3.464 | 1.675 | 1.763 | 1.050 | 1.138 | 0.055 | 0.047 | 0.055 |
2-1/4 | 2.2500 | 3.263 | 3.375 | 3.719 | 3.897 | 1.890 | 1.986 | 1.155 | 1.267 | 0.061 | 0.052 | 0.061 |
2-1/2 | 2.5000 | 3.625 | 3.750 | 4.133 | 4.330 | 2.105 | 2.209 | 1.401 | 1.427 | 0.068 | 0.058 | 0.068 |
2-3/4 | 2.7500 | 3.998 | 4.125 | 4.546 | 4.763 | 2.319 | 2.431 | 1.522 | 1.556 | 0.074 | 0.064 | 0.074 |
3 | 3.0000 | 4.350 | 4.500 | 4.959 | 5.196 | 2.534 | 2.654 | 1.643 | 1.685 | 0.081 | 0.070 | 0.081 |
3-1/4 | 3.2500 | 4.713 | 4.875 | 5.373 | 5.629 | 2.749 | 2.877 | 1.748 | 1.814 | 0.087 | 0.075 | 0.087 |
3-1/2 | 3.5000 | 5.075 | 5.250 | 5.786 | 6.062 | 2.964 | 3.100 | 1.870 | 1.943 | 0.094 | 0.081 | 0.094 |
3-3/4 | 3.7500 | 5.438 | 5.625 | 6.199 | 6.495 | 3.178 | 3.322 | 1.990 | 2.072 | 0.100 | 0.087 | 0.100 |
4 | 4.0000 | 5.800 | 6.000 | 6.612 | 6.928 | 3.393 | 3.545 | 2.112 | 2.201 | 0.107 | 0.093 | 0.107 |
Dimensions of Titanium Gr 2 Heavy Hex Nuts & Heavy Hex Jam Nuts
Nominal Size | Basic Major Diameter of Thread |
F | G | H | H1 | Maximum Runout of Bearing Surface to Thread Axis, FIM |
|||||||||
Width Across Flats | Width Across Corners |
Thickness Heavy Hex Nuts |
Thickness Heavy Hex Jam Nuts |
Heavy Hex Nuts | Heavy Hex Jam Nuts |
||||||||||
Specified Proof Load | |||||||||||||||
Basic | Min. | Max. | Min. | Max. | Basic | Min. | Max. | Basic | Min. | Max. | Up to 150,000 psi |
150,000 psi and Greater |
All Strength Levels |
||
1/4 | 0.2500 | 1/2 | 0.488 | 0.500 | 0.556 | 0.577 | 15/64 | 0.218 | 0.250 | 11/64 | 0.156 | 0.188 | 0.017 | 0.011 | 0.017 |
5/16 | 0.3125 | 9/16 | 0.546 | 0.562 | 0.622 | 0.650 | 19/64 | 0.280 | 0.314 | 13/64 | 0.186 | 0.220 | 0.020 | 0.012 | 0.020 |
3/8 | 0.3750 | 11/16 | 0.669 | 0.688 | 0.763 | 0.794 | 23/64 | 0.341 | 0.377 | 15/64 | 0.216 | 0.252 | 0.021 | 0.014 | 0.021 |
7/16 | 0.4375 | 3/4 | 0.728 | 0.750 | 0.830 | 0.866 | 27/64 | 0.403 | 0.441 | 17/64 | 0.247 | 0.285 | 0.022 | 0.015 | 0.022 |
1/2 | 0.5000 | 7/8 | 0.850 | 0.875 | 0.969 | 1.010 | 31/64 | 0.464 | 0.504 | 19/64 | 0.277 | 0.317 | 0.023 | 0.016 | 0.023 |
9/16 | 0.5625 | 15/16 | 0.909 | 0.938 | 1.037 | 1.083 | 35/64 | 0.526 | 0.568 | 21/64 | 0.307 | 0.349 | 0.024 | 0.017 | 0.024 |
5/16 | 0.6250 | 1-1/16 | 1.031 | 1.062 | 1.175 | 1.227 | 39/64 | 0.587 | 0.631 | 23/64 | 0.337 | 0.381 | 0.025 | 0.018 | 0.025 |
3/4 | 0.7500 | 1-1/4 | 1.212 | 1.250 | 1.382 | 1.443 | 47/64 | 0.710 | 0.758 | 27/64 | 0.398 | 0.446 | 0.027 | 0.020 | 0.027 |
7/8 | 0.8750 | 1-7/16 | 1.394 | 1.438 | 1.589 | 1.660 | 55/64 | 0.833 | 0.885 | 31/64 | 0.458 | 0.510 | 0.029 | 0.022 | 0.029 |
1 | 1.0000 | 1-5/8 | 1.575 | 1.625 | 1.796 | 1.876 | 63/64 | 0.956 | 1.012 | 35/64 | 0.519 | 0.575 | 0.031 | 0.024 | 0.031 |
1-1/8 | 1.1250 | 1-13/16 | 1.756 | 1.812 | 2.002 | 2.093 | 1-7/64 | 1.079 | 1.139 | 39/64 | 0.579 | 0.639 | 0.033 | 0.027 | 0.033 |
1-1/4 | 1.2500 | 2 | 1.938 | 2.000 | 2.209 | 2.309 | 1-7/32 | 1.187 | 1.251 | 23/32 | 0.687 | 0.751 | 0.035 | 0.030 | 0.035 |
1-3/8 | 1.3750 | 2-3/16 | 2.119 | 2.188 | 2.416 | 2.526 | 1-11/32 | 1.310 | 1.378 | 25/32 | 0.747 | 0.815 | 0.038 | 0.033 | 0.038 |
1-1/2 | 1.5000 | 2-3/8 | 2.300 | 2.375 | 2.622 | 2.742 | 1-15/32 | 1.433 | 1.505 | 27/32 | 0.808 | 0.880 | 0.041 | 0.036 | 0.041 |
1-5/8 | 1.6250 | 2-9/16 | 2.481 | 2.562 | 2.828 | 2.959 | 1-19/32 | 1.556 | 1.632 | 29/32 | 0.868 | 0.944 | 0.044 | 0.038 | 0.044 |
1-3/4 | 1.7500 | 2-3/4 | 2.662 | 2.750 | 3.035 | 3.175 | 1-23/32 | 1.679 | 1.759 | 31/32 | 0.929 | 1.009 | 0.048 | 0.041 | 0.048 |
1-7/8 | 1.8750 | 2-15/16 | 2.844 | 2.938 | 3.242 | 3.392 | 1-27/32 | 1.802 | 1.886 | 1-1/32 | 0.989 | 1.073 | 0.051 | 0.044 | 0.051 |
2 | 2.0000 | 3-1/8 | 3.025 | 3.125 | 3.449 | 3.608 | 1-31/32 | 1.925 | 2.013 | 1-3/32 | 1.050 | 1.138 | 0.055 | 0.047 | 0.055 |
2-1/4 | 2.2500 | 3-1/2 | 3.388 | 3.500 | 3.862 | 4.041 | 2-13/64 | 2.155 | 2.251 | 1-13/64 | 1.155 | 1.251 | 0.061 | 0.052 | 0.061 |
2-1/2 | 2.5000 | 3-7/8 | 3.750 | 3.875 | 4.275 | 4.474 | 2-29/64 | 2.401 | 2.505 | 1-29/64 | 1.401 | 1.505 | 0.068 | 0.058 | 0.068 |
2-3/4 | 2.7500 | 4-1/4 | 4.112 | 4.250 | 4.688 | 4.907 | 2-45/64 | 2.647 | 2.759 | 1-37/64 | 1.522 | 1.634 | 0.074 | 0.064 | 0.074 |
3 | 3.0000 | 4-5/8 | 4.475 | 4.625 | 5.102 | 5.340 | 2-61/64 | 2.893 | 3.013 | 1-45/64 | 1.643 | 1.763 | 0.081 | 0.070 | 0.081 |
3-1/4 | 3.2500 | 5 | 4.838 | 5.000 | 5.515 | 5.774 | 3-3/16 | 3.124 | 3.252 | 1-13/16 | 1.748 | 1.876 | 0.087 | 0.075 | 0.087 |
3-1/4 | 3.5000 | 5-3/8 | 5.200 | 5.375 | 5.928 | 6.207 | 3-7/16 | 3.370 | 3.506 | 1-15/16 | 1.870 | 2.006 | 0.094 | 0.081 | 0.094 |
3-3/4 | 3.7500 | 5-3/4 | 5.562 | 5.750 | 6.341 | 6.640 | 3-11/16 | 3.616 | 3.760 | 2-1/16 | 1.990 | 2.134 | 0.100 | 0.087 | 0.100 |
4 | 4.0000 | 6-1/4 | 5.925 | 6.125 | 6.755 | 7.073 | 3-15/16 | 3.862 | 4.014 | 2-3/16 | 2.112 | 2.264 | 0.107 | 0.093 | 0.107 |
Ready Stock Titanium Gr 2 Hex Nuts
- Titanium Gr 2 Hex Head Nut
- Titanium Alloy Gr 2 Slotted Hex Nuts
- Ti Alloy Gr 2 Nylon Insert Lock Nuts
- Ti Alloy Gr 2 Heavy Hex Nuts
- DIN 3.7035 Hex Nuts
- Ti Alloy Gr 2 Hex Socket Nut
- Ti Alloy Gr 2 Long Hex Nut
- Ti Alloy Gr 2 Hex Nuts
- Titanium Gr 2 Alloy Hex Sleeve Nuts
- Titanium Gr 2 Flanged Hex Nuts Stockholder
- Titanium Gr 2 Hexagon Nut Supplier in Mumbai
- Titanium Gr 2 Hexagonal Nylon Lock Nut
- Titanium Alloy Gr 2 Heavy Hexagon Nuts
- UNS R50400 Hex Nuts
- Titanium Gr 2 Finished Hex Nuts
- Titanium Gr 2 Industrial Hex Nuts Exporter
- Ti Alloy Gr 2 Semi-Finished Hex Nuts
- Titanium Gr 2 Coupling Nuts
- Ti Alloy Gr 2 Heavy Hex Nuts Distributor
- Titanium Alloy Gr 2 Self Locking Hex Nuts
- Titanium Gr 2 Hex Jam Nuts
- Ti Alloy Gr 2 Hexagon Nuts
- Titanium Gr 2 Hex Nut Manufacturer
- Titanium Gr 2 Machine Hex Nuts
- Titanium Gr 2 Industrial Hex Nuts
- Ti Alloy Gr 2 Hexagonal Nylon Lock Nut
- Titanium Alloy Gr 2 Heavy Hex Jam Nuts
- Titanium Gr 2 Serrated Hex Flange Nut
- Ti Alloy Gr 2 Heavy Hex Nuts
- Titanium Alloy Gr 2 Heavy Hex Nuts
- 3.7035 Thin Hex Nuts
- Titanium Gr 2 Hex Nuts Manufacturer
- Titanium Gr 2 Hex Machine Nut Stockist
- Ti Alloy Gr 2 Hex Round Nut
- Titanium Alloy Gr 2 Hex Flange Nut
- Ti Alloy Gr 2 Slotted Hex Nuts
Titanium Alloy Gr 2 Hex Nuts Chemical Composition
Grade | Ti | C | Fe | H | N | O |
Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max |
Titanium Gr 2 Hex Nuts Mechanical Properties
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Titanium Gr 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
