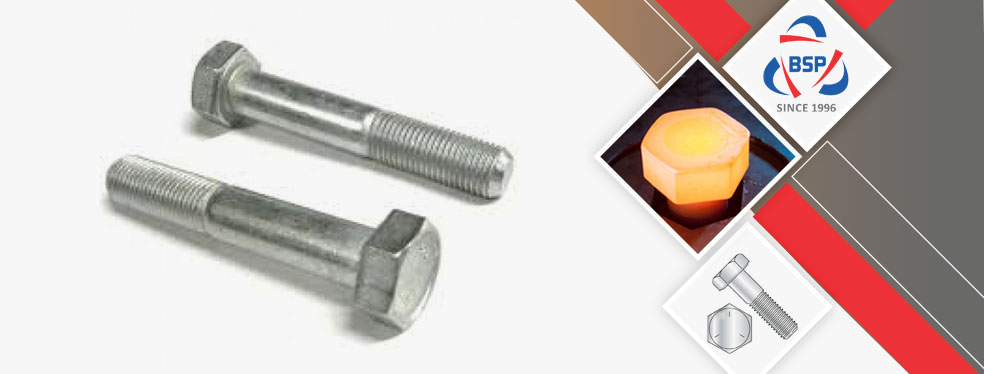

Titanium Gr 5 Hex Bolts

Titanium Gr 5 Hex Bolts, Titanium Gr 5 Hexagonal Bolt, Grade 5 Titanium Hex Head Bolt, Titanium Gr 5 Hex Bolts, Alloy Titanium Heavy Hex Bolt Price in India.

Bagoda Steel is a popular seller and trader of Titanium Grade 5 Hex Bolts, which is consequently taken into consideration as a unique shape of corrosion. Pitting corrosion is taken into consideration the maximum not unusual shape of localized corrosion. If PREN is higher in Titanium UNS 56400 Hex Bolts, then the pitting corrosion resistance is likewise higher. Thus, growing chromium, molybdenum, and nitrogen contents offer higher resistance to pitting corrosion. Though the PREN of sure metal can be theoretically enough to withstand pitting corrosion, crevice corrosion can nevertheless arise whilst the negative layout has created restricted areas (overlapping plates, washer-plate interfaces, etc.) or whilst deposits shape at the material. In these pick out areas, the PREN won't be excessive sufficient for the provider situations.

Industrial Product
Titanium Gr 5 Hex Bolts

Titanium Gr 5 Hex Bolt Stockist, 3.7165 Hex Bolts, Alloy Titanium Hex Flange Bolt, Titanium Alloy Gr 5 Hex Head Shoulder Bolt, Titanium Gr 5 Hex Cap Screw, Titanium Gr 5 Machine Hex Bolt, Grade 5 Titanium Industrial Hex Bolt, UNS R56400 Full Threaded Hex Bolt Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Good layout, fabrication techniques, alloy selection, right running situations primarily based totally at the awareness of lively compounds gift within the answer inflicting corrosion, pH, etc. can save you such corrosion. The maximum not unusual place electrolyte is water, starting from fresh water to seawater. Stress corrosion cracking (SCC) is an unexpected cracking and failure of an element without deformation. Titanium WNR 3.7165 Hex Bolts can also additionally arise whilst situations are met: The component is stressed (through an implemented load or through residual pressure); the surroundings are aggressive (excessive chloride degree, temperature above 50 Degree C (122 Degree F), presence of H2S); the metal isn't always sufficiently SCC-resistant.

The SCC mechanism effects from the subsequent series of events: Pitting occurs, Cracks begin from a pit initiation site, Cracks then propagate via the metallic in a transgranular or intergranular mode, and Failure occurs. Whereas pitting normally results in unpleasant surfaces and, at worst, to perforation of the immaculate sheet, failure through SCC will have intense consequences. As SCC calls for numerous situations to be met, Alloy Ti 6Al/4V Hex Bolts may be counteracted by means of surprisingly smooth measures, consisting of decreasing the pressure degree (the oil and fueloline specs offer necessities for maximal pressure degree in H2S-containing environments). It is likewise assessing the aggressiveness of the surroundings (with excessive chloride content).

Material Specification Chart of Titanium Gr 5 Hex Bolts

Standard DIN 933, DIN 931, DIN-EN14399-4, DIN 601, ISO 4016, IS1364, ISO 4014, ISO 4017, BS 1768, BS 1083, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, CSN 21301, EU 24016, DIN 7968, DIN7990
Manufacturing Method
  • Cold Forming Hex Bolt: M2 to M24
  • Hot Forging Hex Bolt: M24 to M100
Metric Sizes
  • Dia: M10 – M110
  • Length: 12 – 1200MM
Length 3 mm to 200 mm or custom
US Threads METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
UTS – Unified Thread Standard UNC, UNF, NPT, UNS, UNEF, NPTF
Heads and drive style Phillips/ Slot, Phillips, indented hex head, Oval, Pan, Flat 82 degree, Round, flat undercut, Truss, binding, flat head 100 degree, Slotted, fillister head, Six-Lobe
Manufacturing process Wire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
Standard
  • ANSI B 28.2.4 1M/ B 18.2.4 2M
  • ANSI – American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
Surface Coating
  • Ptfe Coated Hex Bolts
  • Hot Dipped Galvanized
  • Phosphate
  • Teflon
  • Xylon
  • Zinc Phosphate
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium
Surface treatment
  • Polish
  • Passivation
  • Black oxide coating
  • Anodizing
  • Sand blasting
  • Rust preventive oil
  • Heat-disposing
  • Hot dip galvanized
  • Electroplating color
Test Certificates
  • EN 10204 / 3.1 MTC
  • ISO 898-1, ISO 898-2,
  • EN 14399-10
  • EN 14399-2
  • ISO 148-1, ISO 6508-1
ISO – International Organization for Standardization
  • ISO 4014
  • ISO 4017
  • ISO 4032
  • ISO 4162
  • ISO 4161

Various Types Of Titanium Gr 5 Hex Bolts

Titanium Gr 5 Hex Head Bolt
Titanium Gr 5 Hex Head Bolt
  • Titanium Gr 5 Hex Socket Head Bolt
  • Titanium Gr 5 Hex Head Bolt
  • Ti Gr 5 Hex Head Bolt
  • UNS R56400 Hex Head Bolts
  • 3.7165 Hex Head Bolts
Titanium Gr 5 Heavy Hex Bolts
Titanium Gr 5 Heavy Hex Bolt
  • 3.7165 Heavy Hex Bolts
  • Ti Alloy Grade 5 Heavy Hex Bolts
  • Titanium Gr 5 Heavy Hex Bolts
  • UNS R56400 Heavy Hex Bolts
  • Titanium Gr 5 Heavy Hex Bolts
Titanium Gr 5 Hex Flange Bolts
Titanium Gr 5 Hex Flange Bolt
  • Titanium Gr 5 Flange Hex Bolts
  • UNS R56400 Hex Flange Bolt
  • Titanium Alloy Gr 5 Hex Flange Bolt
  • 3.7165 Hex Flange Bolts
  • Titanium Gr 5 Hex Flange Bolt
Titanium Gr 5 Slotted Hex Bolts
Titanium Gr 5 Slotted Hex Bolt
  • Titanium Gr 5 Slotted Hex Bolts
  • Grade 5 Titanium Slotted Hex Bolt
  • Titanium Gr 5 Slotted Hex Bolts
  • 3.7165 Beveled Slotted Hex Bolt
  • UNS R56400 Slotted Hex Bolts
Titanium Gr 5 Full Threaded Hex Bolt
Titanium Gr 5 Full Threaded Hex Bolt
  • Titanium Gr 5 Full Threaded Hex Bolt
  • 3.7165 Fully Threaded Hex Bolt
  • UNS R56400 Fully Threaded Hex Bolts
  • Titanium Gr 5 Full Threaded Hex Bolt
  • Alloy Titanium Full Threaded Hex Bolt
Titanium Gr 5 Half Threaded Hex Bolts
Titanium Gr 5 Half Threaded Hex Bolt
  • UNS R56400 Half Threaded Hex Bolts
  • Titanium Gr 5 Half Threaded Hex Bolts
  • Titanium Gr 5 Half Threaded Hex Bolts
  • 3.7165 Half Threaded Hex Bolts
  • Ti Alloy Grade 5 Half Threaded Hex Bolts

Equivalent Grades of Titanium Gr 5 Hex Bolts

STANDARD WERKSTOFF NR. UNS
Gr 5 3.7165 R56400
Hex Bolts Dimensions

View Size Table Of Titanium Gr 5 Hex Bolts, We have Global sales network for Ti Alloy Grade 5 Heavy Hex Bolts, Wide Stockist Of Werkstoff No 3.7165 Hex Head Bolts, Industrial Hex Bolts In India.

Dimensions of Titanium Gr 5 Hex Bolts

Nominal Size or Basic
Product Diameter		 E F G H R LT
Full-size Body Diameter Width Across Flats Width Across Corners Height Radius of Fillet Nominal Thread Length for
Bolt Lengths
6 in. and
Shorter		 Over
6 in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min.
1/4 0.2500 0.260 0.237 7/16 0.438 0.425 0.505 0.484 11/64 0.188 0.150 0.03 0.01 0.750 1.000
5/16 0.3125 0.324 0.298 1/2 0.500 0.484 0.577 0.552 7/32 0.235 0.195 0.03 0.01 0.875 1.125
3/8 0.3750 0.388 0.360 9/16 0.562 0.544 0.650 0.620 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.4375 0.452 0.421 5/8 0.625 0.603 0.722 0.687 19/64 0.316 0.272 0.03 0.01 1.125 1.375
1/2 0.5000 0.515 0.482 3/4 0.750 0.725 0.866 0.826 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 15/16 0.938 0.906 1.083 1.033 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/8 1.125 1.088 1.299 1.240 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-5/16 1.312 1.269 1.516 1.447 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-1/2 1.500 1.450 1.732 1.653 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-11/16 1.688 1.631 1.949 1.859 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 1-7/8 1.875 1.812 2.165 2.066 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-1/16 2.062 1.994 2.382 2.273 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-1/4 2.250 2.175 2.598 2.480 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-7/16 2.438 2.356 2.815 2.616 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-5/8 2.625 2.538 3.031 2.893 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-13/16 2.812 2.719 3.248 3.099 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3 3.000 2.900 3.464 3.306 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-3/8 3.375 3.262 3.897 3.719 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-3/4 3.750 3.625 4.330 4.133 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/8 4.125 3.988 4.763 4.546 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-1/2 4.500 4.350 5.196 4.959 2 2.060 1.815 0.19 0.06 6.250 6.500
3-1/4 3.2500 3.335 3.210 4-7/8 4.875 4.712 5.629 5.372 2-3/16 2.251 1.936 0.19 0.06 6.750 7.000
3-1/2 3.5000 3.589 3.461 5-1/4 5.250 5.075 6.062 5.786 2-5/16 2.380 2.057 0.19 0.06 7.250 7.500
3-3/4 3.7500 3.858 3.726 5-5/8 5.625 5.437 6.495 6.198 2-1/2 2.572 2.241 0.19 0.06 7.750 8.000
4 4.0000 4.111 3.975 6 6.000 5.800 6.928 6.612 2-11/16 2.764 2.424 0.19 0.06 8.250 8.500

Dimensions of Titanium Gr 5 Heavy Hex Bolts

Nominal Size
or Basic
Product Diameter		 E F G H R LT
Full-size Body
Diameter		 Width Across Flats Width Across
Corners		 Head Height Radius of Fillet Nominal Thread
Length for
Screw Lengths
6 in.
and
Shorter		 Over 6
in.
Max. Min. Basic Max. Min. Max. Min. Basic Max. Min. Max. Min. Nom. Nom.
3/8 0.3750 0.388 0.360 11/16 0.688 0.669 0.794 0.763 1/4 0.268 0.226 0.03 0.01 1.000 1.250
1/2 0.5000 0.515 0.482 7/8 0.875 0.850 1.010 0.969 11/32 0.364 0.302 0.03 0.01 1.250 1.500
5/8 0.6250 0.642 0.605 1-1/16 1.062 1.031 1.227 1.175 27/64 0.444 0.378 0.06 0.02 1.500 1.750
3/4 0.7500 0.768 0.729 1-1/4 1.250 1.212 1.443 1.383 1/2 0.524 0.455 0.06 0.02 1.750 2.000
7/8 0.8750 0.895 0.852 1-7/16 1.438 1.394 1.660 1.589 37/64 0.604 0.531 0.06 0.02 2.000 2.250
1 1.0000 1.022 0.976 1-5/8 1.625 1.575 1.876 1.796 43/64 0.700 0.591 0.09 0.03 2.250 2.500
1-1/8 1.1250 1.149 1.098 1-13/16 1.812 1.756 2.093 2.002 3/4 0.780 0.658 0.09 0.03 2.500 2.750
1-1/4 1.2500 1.277 1.223 2 2.000 1.938 2.309 2.209 27/32 0.876 0.749 0.09 0.03 2.750 3.000
1-3/8 1.3750 1.404 1.345 2-3/16 2.188 2.119 2.526 2.416 29/32 0.940 0.810 0.09 0.03 3.000 3.250
1-1/2 1.5000 1.531 1.470 2-3/8 2.375 2.300 2.742 2.622 1 1.036 0.902 0.09 0.03 3.250 3.500
1-5/8 1.6250 1.658 1.591 2-9/16 2.562 2.481 2.959 2.829 1-3/32 1.116 0.978 0.09 0.03 3.500 3.750
1-3/4 1.7500 1.785 1.716 2-3/4 2.750 2.662 3.175 3.035 1-5/32 1.196 1.054 0.12 0.04 3.750 4.000
1-7/8 1.8750 1.912 1.839 2-15/16 2.938 2.844 3.392 3.242 1-1/4 1.276 1.130 0.12 0.04 4.000 4.250
2 2.0000 2.039 1.964 3-1/8 3.125 3.025 3.608 3.449 1-11/32 1.388 1.175 0.12 0.04 4.250 4.500
2-1/4 2.2500 2.305 2.214 3-1/2 3.500 3.388 4.041 3.862 1-1/2 1.548 1.327 0.19 0.06 4.750 5.000
2-1/2 2.5000 2.559 2.461 3-7/8 3.875 3.750 4.474 4.275 1-21/32 1.708 1.479 0.19 0.06 5.250 5.500
2-3/4 2.7500 2.827 2.711 4-1/4 4.250 4.112 4.907 4.688 1-13/16 1.869 1.632 0.19 0.06 5.750 6.000
3 3.0000 3.081 2.961 4-5/8 4.625 4.475 5.340 5.102 2 2.060 1.815 0.19 0.06 6.250 6.500

Check available Sizes of Titanium Gr 5 Hex Bolts, Ask For Ready Stock of UNS R56400 Heavy Hex Bolts in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Titanium Gr 5 Heavy Hex Structural Bolt

Bolt Size A B C D E
Radius of Fillet		 F
Thread Length		 G
Transitional
Thread Length		 Runout of
Bearing Surface
FIM
max min min max min max
1/2″ 0.515 0.482 7/8 0.969 5/16 0.031 0.009 1.00 0.19 0.016
5/8″ 0.642 0.605 1-1/16 1.175 25/64 0.062 0.021 1.25 0.22 0.019
3/4″ 0.768 0.729 1-1/4 1.383 15/32 0.062 0.021 1.38 0.25 0.022
7/8″ 0.895 0.852 1-7/16 1.589 35/64 0.062 0.031 1.50 0.28 0.025
1″ 1.022 0.976 1-5/8 1.796 39/64 0.093 0.062 1.75 0.31 0.028
1-1/8″ 1.149 1.098 1-13/16 2.002 11/16 0.093 0.062 2.00 0.34 0.032
1-1/4″ 1.277 1.223 2 2.209 25/32 0.093 0.062 2.00 0.38 0.035
1-3/8″ 1.404 1.345 2-3/16 2.416 27/32 0.093 0.062 2.25 0.44 0.038
1-1/2″ 1.531 1.470 2-3/8 2.622 15/16 0.093 0.062 2.25 0.44 0.041

Weight Chart Of Titanium Gr 5 Hex Bolts

THREADS According to IS 1363/67
APPROX. WEIGHT IN KGS FOR 100 NOS
LENGTH in mm DIAMETER (METRIC)
M5 M6 M12 M8 M10 M16 M14 M20 M18 M22
16 0.448 0.743 1.590 3.211
20 0.598 0.812 4.892 1.711 3.411
25 0.660 0.897 5.252 1.871 3.660 8.170
30 0.737 1.010 5.574 2.070 3.912 10.707 9.690 18.657
35 0.804 1.120 5.974 2.271 4.223 11.416 10.000 19.608 16.026
40 0.881 1.230 6.410 2.470 4.533 12.107 10.288 20.747 16.667
45 0.958 1.340 6.859 2.671 4.840 12.821 10.504 21.739 17.241
50 1.030 1.450 7.299 2.870 5.155 13.624 11.261 22.727 17.857 28.409
55 1.560 7.740 3.071 5.464 14.409 11.628 23.810 18.868 30.120
60 1.670 8.183 3.270 5.774 15.244 12.255 25.126 20.000 32.051
65 1.781 8.621 3.472 6.083 16.026 12.626 26.455 21.008 34.014
70 1.890 9.058 3.671 6.394 16.835 12.987 27.778 22.124 35.461
75 2.000 9.506 3.873 6.702 17.606 13.228 29.070 23.256 39.063
80 2.111 10.000 4.072 7.013 18.248 13.889 30.303 24.510 40.000
90 10.917 4.472 7.634 19.841 14.925 33.113 26.042 41.667
100 11.820 4.873 8.251 21.459 16.340 35.714 27.778 46.296
110 12.723 8.881 23.041 17.730 38.168 31.250 47.170
120 13.624 9.506 24.631 18.797 40.984 32.895 50.000
130 14.535 10.101 26.316 20.000 43.478 34.722 52.632
140 15.432 10.707 27.933 20.833 46.296 35.461 55.556
150 16.340 11.312 29.412 22.222 48.544 37.594 58.824
160 17.241 11.905 31.056 24.272 50.505 40.984 61.728
170 18.116 12.500 32.680 53.191 64.935
180 19.011 13.123 34.247 26.882 55.556 67.568
190 19.920 13.736 35.971 58.140 70.423
200 20.833 14.327 37.594 29.586 60.976 49.020 73.529
220 22.624 15.528 40.650 65.789 79.365
240 24.510 16.722 43.860 71.429 84.746
250 25.381 17.301 45.455 74.627 87.719
260 26.316 17.921 47.170 76.923 90.909
280 28.090 19.157 50.505 81.967 98.039
300 29.940 20.325 53.763 87.719 104.167
320 31.646 56.818 92.593
340 33.557 60.241 98.039
360 35.211 63.291 104.167
380 37.037 66.667 108.696
400 39.063 69.444 113.636

Ready Stock Titanium Gr 5 Hex Bolts

  • Titanium Alloy Gr 5 Hex Tap Bolts
  • Titanium Gr 5 Hexagon Bolts
  • Titanium Gr 5 Fully Threaded Hex Bolt
  • DIN 3.7165 Hex Bolts
  • Titanium Gr 5 Flanged Hex Bolts Stockholder
  • Titanium Gr 5 Hex Machine Bolt Stockist
  • Alloy Titanium Hex Flange Bolt
  • Titanium Gr 5 Industrial Hex Bolts
  • Alloy Titanium Heavy Hex Bolts
  • Titanium Alloy Gr 5 Heavy Hex Bolts
  • Grade 5 Titanium Hex Head Bolt
  • Titanium Gr 5 Full Threaded Hex Bolt
  • Titanium Alloy Gr 5 Slotted Hex Bolts
  • Titanium Gr 5 Hexagon Bolt Supplier in Mumbai
  • Alloy Titanium Threaded Hex Bolts
  • Titanium Alloy Gr 5 Self Sealing Hex Bolts
  • UNS R56400 Hex Bolts
  • Grade 5 Titanium Metric Hex Bolts
  • Grade 5 Titanium Slotted Hex Bolts
  • Titanium Gr 5 Hex Head Shoulder Bolt
  • Ti Alloy Grade 5 Hex Bolts Manufacturer
  • Ti Alloy Grade 5 Heavy Hex Structural Bolt
  • Titanium Gr 5 Half Threaded Hex Bolt
  • Alloy Titanium Hexagon Screw Head Bolt
  • Grade 5 Titanium Hex Bolts
  • Titanium High Tensile Hex Bolts
  • Alloy Titanium Socket Head Cap Screw
  • Grade 5 Titanium Hex Cap Screw
  • Titanium Gr 5 Hex Structural Bolts
  • 3.7165 Hex Machine Bolt
  • Titanium Alloy Gr 5 Hex Socket Bolts Distributor
  • Titanium Gr 5 Industrial Hex Bolts Exporter
  • Titanium Gr 5 Hex Bolt Manufacturer
  • Titanium Alloy Gr 5 Half Threaded Hex Bolt
  • Ti Gr 5 Heavy Hex Bolts
  • Titanium Alloy Gr 5 Hex Head Shoulder Bolts

Titanium Gr 5 Hex Bolts Chemical Composition

Grade N C H Fe O Al V
Ti Grade 5 0.05 max 0.10 max 0.01 max 0.40 max 0.20 max 5.50-6.75 3.50-4.50

Titanium Gr 5 Hex Bolts Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Titanium Gr 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

Export Destinations For Titanium Gr 5 Hex Bolts

industry
