Hot Dip Galvanized Bolts, F1554 Hot Dip Galvanized Screws, Hot Dip Galvanized Allen Cap Screw, Hot Dip Galvanized Anchor Bolts, Hot Dip Galvanized Flat Washers, Hot Dip Galvanized Fasteners, Hot Dip Galvanized Carriage Bolts Stockist, Hot Dip Galvanized Nuts, Hot Dip Galvanized Fasteners Supplier in Mumbai, India.
The effect in a microstructure provides these alloys with proper resistance to inter - granular corrosion.The variety among one thousand Degree C and seven hundred Degree C need to be traversed inside to keep away from Sigma stages in these alloys.The excessive fatigue strength of these Hot Dip Galvanized Bolts may be defined via way of means of its proper mechanical properties; at the same time as its excessive resistance to corrosion fatigue has been validated via way of means of fatigue trying out in corrosive media.The nickel alloy in these alloys is more potent and might resist better seawater velocities.
It carries nickel with addition of manganese and iron, which might be essential to preserve resistance closer to corrosion. While the number one feature of the alloys is to live to tell the tale beneath excessive - strain, excessive - temperature applications, the leader advantage is its cap-potential to withstand hydrochloric acid in any respect temperatures and concentrations. In these alloys, the tungsten become absolutely overlooked and the iron content material become reduced. Hot Dip Galvanized Washers has many benefits over different metals and materials in coping with phosphoric, sulfuric and nitric acids and in fluoride environments and oxidizing acid mixtures.
Standard Specification For Hot Dip Galvanized Fasteners
| Specification | ASTM/ASME B18.2.1, B18.3 |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Threads | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard | ANSI – American National Standards Institute
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards |
| In Form of | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Surface finishing | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| Surface Coating |
All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |

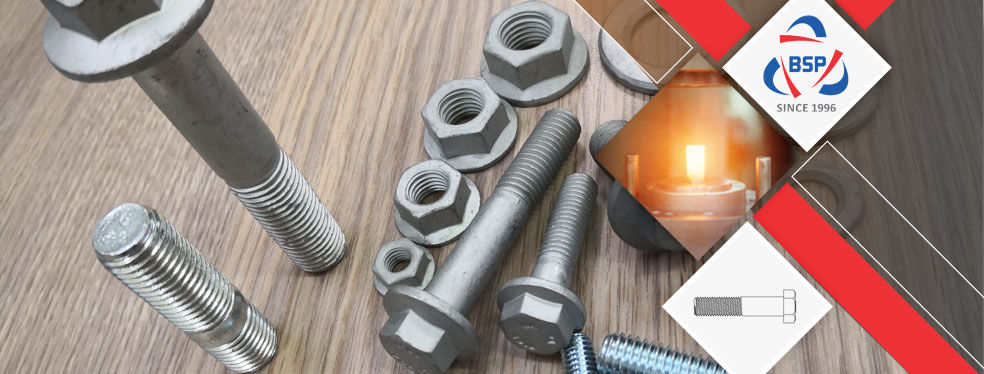

Various Types Of Hot Dip Galvanized Fasteners

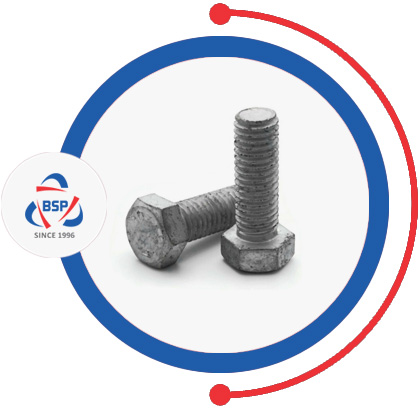

Hot Dip Galvanized Bolts
- Hot Dip Galvanized Hex Head Bolts
- Hot Dip Galvanized Hex Bolts
- Hot Dip Galvanized Heavy Hex Bolts
- Hot Dip Galvanized Bolt

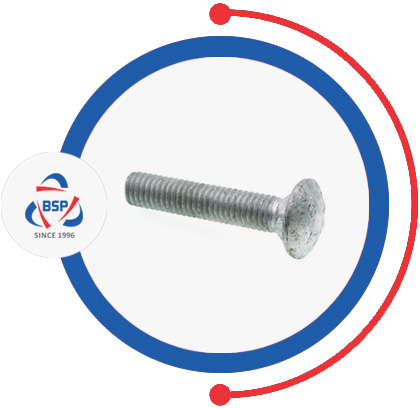

Hot Dip Galvanized Screw
- Hot Dip Galvanized Allen Cap Screw
- Hot Dip Galvanized Hex Cap Screws
- Hot Dip Galvanized Socket Head Cap Screw
- Hot Dip Galvanized Screw
- Hot Dip Galvanized q Set Screws

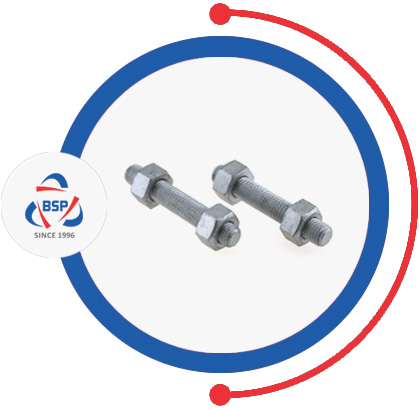

Hot Dip Galvanized Stud Bolts
- Hot Dip Galvanized Bolts
- Hot Dip Galvanized Threaded Stud Bolts
- Hot Dip Galvanized Stud Bolts
- Hot Dip Galvanized Stud
View Size Table Of Hot Dip Galvanized Fasteners, We have Global sales network for Hot Dip Galvanized Stud Bolts, Wide Stockist Of Hot Dip Galvanized Nuts, Bolts, Washers In India.
Hot Dip Galvanized Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
ANSI And/Or ASME Standards Hot Dip Galvanized Fasteners Inch Series
| ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
|---|---|---|---|
| ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
| ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
| ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
| ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
| ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
| ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
| ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
| ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
| ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
| ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Dimensions Of Hot Dip Galvanized Bolts
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Hot Dip Galvanized Fasteners Torque Chart
| Torque Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
Nitronic | Nitronic | ||||||
| #2 | 56 | 2.5 | 2.6 | ||||
| 64 | 3.0 | 3.2 | |||||
| #3 | 48 | 3.9 | 4.0 | ||||
| 56 | 4.4 | 4.6 | |||||
| #4 | 40 | 5.2 | 5.5 | ||||
| 48 | 6.6 | 6.9 | |||||
| #5 | 40 | 7.7 | 8.1 | ||||
| 44 | 9.4 | 9.8 | |||||
| #6 | 32 | 9.6 | 10.1 | ||||
| 40 | 12.1 | 12.7 | |||||
| #8 | 32 | 19.8 | 20.7 | ||||
| 36 | 22.0 | 23.0 | |||||
| #10 | 24 | 22.8 | 23.8 | ||||
| 32 | 31.7 | 33.1 | |||||
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
| Nitronic | Nitronic | ||||||
| 1/4 | 20 | 75.2 | 78.8 | ||||
| 28 | 94.0 | 99.0 | |||||
| 5/16 | 18 | 132 | 138 | ||||
| 24 | 142 | 147 | |||||
| 3/8 | 16 | 236 | 247 | ||||
| 24 | 259 | 271 | |||||
| 7/16 | 14 | 376 | 393 | ||||
| 20 | 400 | 418 | |||||
| 1/2 | 13 | 517 | 542 | ||||
| 20 | 541 | 565 | |||||
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
| Nitronic | Nitronic | ||||||
| 9/16 | 12 | 682 | 713 | ||||
| 18 | 752 | 787 | |||||
| 5/8 | 11 | 1110 | 1160 | ||||
| 18 | 1244 | 1301 | |||||
| 3/4 | 10 | 1530 | 1582 | ||||
| 16 | 1490 | 1558 | |||||
| 7/8 | 9 | 2328 | 2430 | ||||
| 14 | 2318 | 2420 | |||||
| 1 | 8 | 3440 | 3595 | ||||
| 14 | 3110 | 3250 | |||||
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Foot-Pounds | |||||
| Nitronic | Nitronic | ||||||
| 1 1/8 | 7 | 413 | 432 | ||||
| 12 | 390 | 408 | |||||
| 1 1/4 | 7 | 523 | 546 | ||||
| 12 | 480 | 504 | |||||
| 1 1/2 | 6 | 888 | 930 | ||||
| 12 | 703 | 732 | |||||
Weight Chart Of Hot Dip Galvanized Fasteners
| AS PER IS 1363/67 MM THREADS | ||||||||||
| FOR 100 NOS APPROXIMATE WEIGHT IN KGS | ||||||||||
| LENGTH | Fasteners DIAMETER | |||||||||
| M 6 | M 5 | M 8 | M 12 | M 10 | M 14 | M 18 | M 22 | M 16 | M 20 | |
| 16 mm | 0.743 | 0.448 | 1.590 | 3.211 | ||||||
| 20 mm | 0.812 | 0.598 | 1.711 | 4.892 | 3.411 | |||||
| 25 mm | 0.897 | 0.660 | 1.871 | 5.252 | 3.660 | 8.170 | ||||
| 30 mm | 1.010 | 0.737 | 2.070 | 5.574 | 3.912 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 1.120 | 0.804 | 2.271 | 5.974 | 4.223 | 10.000 | 16.026 | 11.416 | 19.608 | |
| 40 mm | 1.230 | 0.881 | 2.470 | 6.410 | 4.533 | 10.288 | 16.667 | 12.107 | 20.747 | |
| 45 mm | 1.340 | 0.958 | 2.671 | 6.859 | 4.840 | 10.504 | 17.241 | 12.821 | 21.739 | |
| 50 mm | 1.450 | 1.030 | 2.870 | 7.299 | 5.155 | 11.261 | 17.857 | 28.409 | 13.624 | 22.727 |
| 55 mm | 1.560 | 3.071 | 7.740 | 5.464 | 11.628 | 18.868 | 30.120 | 14.409 | 23.810 | |
| 60 mm | 1.670 | 3.270 | 8.183 | 5.774 | 12.255 | 20.000 | 32.051 | 15.244 | 25.126 | |
| 65 mm | 1.781 | 3.472 | 8.621 | 6.083 | 12.626 | 21.008 | 34.014 | 16.026 | 26.455 | |
| 70 mm | 1.890 | 3.671 | 9.058 | 6.394 | 12.987 | 22.124 | 35.461 | 16.835 | 27.778 | |
| 75 mm | 2.000 | 3.873 | 9.506 | 6.702 | 13.228 | 23.256 | 39.063 | 17.606 | 29.070 | |
| 80 mm | 2.111 | 4.072 | 10.000 | 7.013 | 13.889 | 24.510 | 40.000 | 18.248 | 30.303 | |
| 90 mm | 4.472 | 10.917 | 7.634 | 14.925 | 26.042 | 41.667 | 19.841 | 33.113 | ||
| 100 mm | 4.873 | 11.820 | 8.251 | 16.340 | 27.778 | 46.296 | 21.459 | 35.714 | ||
| 110 mm | 12.723 | 8.881 | 17.730 | 31.250 | 47.170 | 23.041 | 38.168 | |||
| 120 mm | 13.624 | 9.506 | 18.797 | 32.895 | 50.000 | 24.631 | 40.984 | |||
| 130 mm | 14.535 | 10.101 | 20.000 | 34.722 | 52.632 | 26.316 | 43.478 | |||
| 140 mm | 15.432 | 10.707 | 20.833 | 35.461 | 55.556 | 27.933 | 46.296 | |||
| 150 mm | 16.340 | 11.312 | 22.222 | 37.594 | 58.824 | 29.412 | 48.544 | |||
| 160 mm | 17.241 | 11.905 | 24.272 | 40.984 | 61.728 | 31.056 | 50.505 | |||
| 170 mm | 18.116 | 12.500 | 64.935 | 32.680 | 53.191 | |||||
| 180 mm | 19.011 | 13.123 | 26.882 | 67.568 | 34.247 | 55.556 | ||||
| 190 mm | 19.920 | 13.736 | 70.423 | 35.971 | 58.140 | |||||
| 200 mm | 20.833 | 14.327 | 29.586 | 49.020 | 73.529 | 37.594 | 60.976 | |||
| 220 mm | 22.624 | 15.528 | 79.365 | 40.650 | 65.789 | |||||
| 240 mm | 24.510 | 16.722 | 84.746 | 43.860 | 71.429 | |||||
| 250 mm | 25.381 | 17.301 | 87.719 | 45.455 | 74.627 | |||||
| 260 mm | 26.316 | 17.921 | 90.909 | 47.170 | 76.923 | |||||
| 280 mm | 28.090 | 19.157 | 98.039 | 50.505 | 81.967 | |||||
| 300 mm | 29.940 | 20.325 | 104.167 | 53.763 | 87.719 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
Check available Sizes of Hot Dip Galvanized Stud Bolt, Ask For Ready Stock of Hot Dip Galvanized Fasteners in Mumbai, India.
