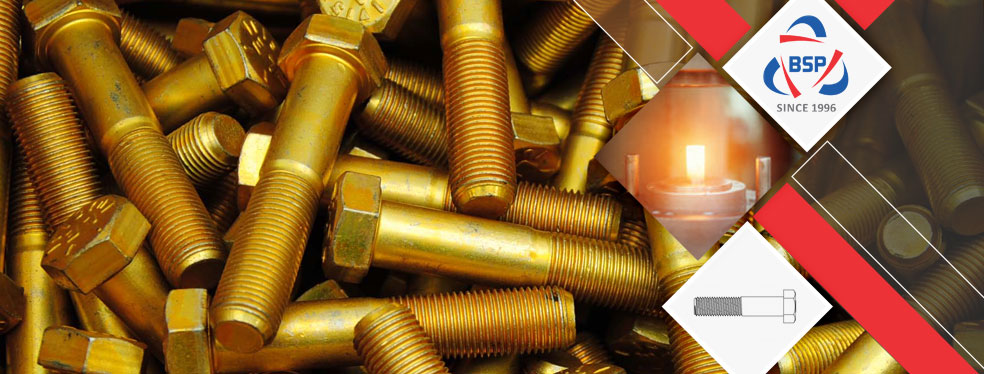

Phosphorous Bronze Fasteners

Phosphorous Bronze Nuts, Phosphorous Bronze Bolts, Phosphorous Bronze Washers, Phosphorous Bronze C51900 Stud Bolts, Phosphorous Bronze Fasteners Price in India.

Bagoda Steel is a customary exporter and traderof Phosphorous Bronze Fasteners, whichcan face up to being subjected to the very best stages of chemical and processing wear-and-tear.Exhaust valve heads and stems in these fasteners were followed via way of means of all of the fundamental valve educate providers for diesel and petrol engine, at the same time were evolved for particular engine applications.High-overall performance motors and motor sports activities engines use these fasteners, that's in particular applicable to exhaust couplings and decrease strength motors use as warmfueloline containment tubing. It is used to make engine valve springs.Phosphorous Bronze Nutsare also utilized in ignition systems, sensors, protection gadgets and electric and digital transfer gear.

Industrial Product
Phosphorous Bronze Fasteners

Phosphorous Bronze C54400 Nuts, Phosphorous Bronze Fasteners, Phosphorous Bronze Allen Cap Screw, Phosphorous Bronze Carriage Bolts Stockist, Phosphorous Bronze Anchor Bolts, Phosphorous Bronze C51000 Flat Washers, Phosphorous Bronze Fasteners, Phosphorous Bronze Bolts, Phosphorous Bronze Screws Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

That's in which our group of committed experts by means of their sizeable information and know-how of chemical and processing industries can help. Matched in company of our outstanding, cutting-edge products, you could ensure that whilst you work in company ofus, your enterprise is proper on the today's advances in alloy improvement and overall performance. Its own key material properties for chemical procedure industries, which encompass resistance to corrosion and metal-fatigue usually related to excessive temperatures and caustic media.Known for its capacity to face up to extreme conditions, Phosphorous Bronze Bolts are tested to lessen your charges withinthe long term via way of means of supplying dependable and durable solutions on your enterprise.

It might be selected for his or her corrosion-resistant properties in procedure applications, and are best for warmth exchangers, furnaces, piping, pumps and valves.We inventory an extensive form of nickel and alloys as standard, however in case your wishes are greater specialised, and we assist you to pick out the proper product on your project.From business furnaces to family items like water warmers and toasters in which electric resistance materials are a prerequisite, Phosphorous Bronze Washers are used for wire, ribbon and strip heating factors.These alloys also are oxidation and corrosion resistant materials, and are well-applicable for carrier in severe environments in which they're subjected to strain and heat.

Standard Specification For Phosphorous Bronze Fasteners

Standard DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
Size M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160
Length 3 mm to 200 mm
Threads METRIC, BSW, BSF, UNC, UNF or as required
Standard ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • ASME B18.2.2
  • ASME B18.5
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
In Form of Hex, Square, Round, Threading as per Gauge Etc.
Head drive Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Surface finishing Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production process M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
Surface Coating
  • Teflon Coated Fasteners
  • Phosphate Coated Fasteners
  • Zinc Coated Fasteners
  • Ptfe Coated
  • Xylon Coated Fasteners
  • Cadmium Coated Fasteners
  • Hot Dipped Galvanizing Coated Fasteners
All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet
Packing IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request

DIN And ISO Designations Of Phosphor Bronze Fasteners

DIN No. of Phosphorous Bronze Fasteners Description
85 Slotted Pan Head Machine Screws
84 Slotted Cheese Head Machine Screws
125A Flat Washer (without Chamfer)
94 Cotter Pin
127B Split Lock Washer
125B Flat Washer (with Chamfer)
315 Wing Nut
137B Spring Wave Washer
911 Long Arm Hex Key
439B Machine Screws Hex Nut, Finished Hex Jam Nut
916 Hex Socket Set Screws
912 Hex Socket Head Cap Screws
933 Hex Head Cap Screws Fully Threaded
931 Hex Head Cap Screws Partially Threaded
939 Double End Stud
934 Finished Hex Nut
961 Hex Head Cap Screws Fully Threaded
960 Hex Head Cap Screws Partially Threaded
964 Slotted Oval Head Machine Screws
963 Slotted Flat Head Machine Screws
966 Phillips Oval Head Machine Screws
965 Phillips Flat Head Machine Screws
975 Threaded Rod
985 Hex Nylon Insert Lock Nut
980V Hex Steel Prevailing Torque Lock Nut
6797A External Tooth Lock Washer
6334 Rod Coupling Nut
7991 Hex Flat Socket Head Cap Screws
6912 Hex Low Socket Head Cap Screws
6797J Internal Tooth Lock Washer
7985 Phillips Pan Head Machine Screws
6923 Hex Flange Nut
6921 Hex Flange Head Screws
ISO 7380 Hex Button Socket Head Cap Screws
ISO 7379 Hex Socket Head Shoulder Screws

Various Types Of Phosphorous Bronze Fasteners

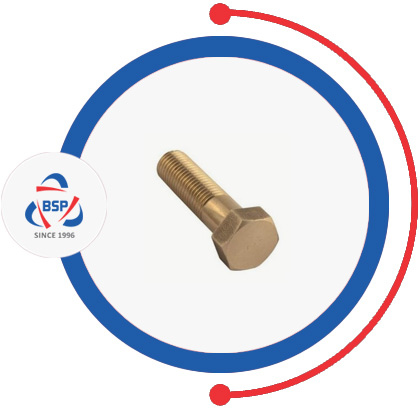

Phosphorous Bronze Bolts
Phosphorous Bronze Bolts
  • Phosphorous Bronze Heavy Hex Bolts
  • Phosphorous Bronze Hex Bolts
  • Phosphorous Bronze Bolt
  • Phosphorous Bronze Hex Head Bolts

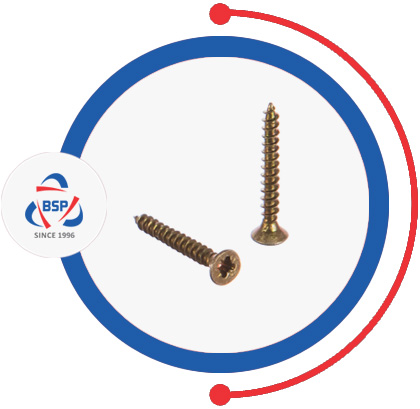

Phosphorous Bronze Screw
Phosphorous Bronze Screw
  • Phosphorous Bronze Screw
  • Phosphorous Bronze Allen Cap Screw
  • Phosphorous Bronze q Set Screws
  • Phosphorous Bronze Socket Head Cap Screw
  • Phosphorous Bronze Hex Cap Screws

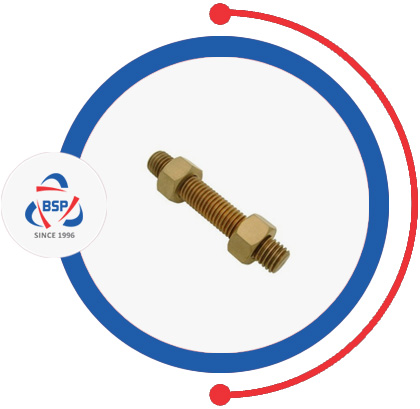

Phosphorous Bronze Stud Bolts
Phosphorous Bronze Stud Bolts
  • Phosphorous Bronze Bolts
  • Phosphorous Bronze Stud
  • Phosphorous Bronze Stud Bolts
  • Phosphorous Bronze Threaded Stud Bolts

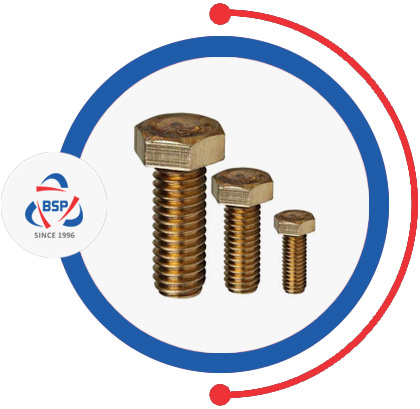

Phosphorous Bronze Hex Bolts
Phosphorous Bronze Hex Bolts
  • Phosphorous Bronze Heavy Hex Bolts
  • Phosphorous Bronze Hex Bolt
  • Phosphorous Bronze Hex Bolts
  • Phosphorous Bronze Hex Head Bolts
Fasteners Dimensions

View Size Table Of Phosphorous Bronze Fasteners, We have Global sales network for Phosphorous Bronze Stud Bolts, Wide Stockist Of Phosphorous Bronze Nuts, Bolts, Washers In India.

Dimensions Of Phosphorous Bronze Hex Bolts

Heavy Hex Bolt Diameter D F C H
Body Diameter Width Across Flats Width Across Corners Height
Max Basic Max Min Max Min Basic Max Min
1/2 0.515 7/8 0.875 0.850 1.010 0.969 11/32 0.364 0.302
5/8 0.642 1-1/16 1.062 1.031 1.227 1.175 27/64 0.444 0.378
3/4 0.768 1-1/4 1.250 1.212 1.443 1.383 1/2 0.524 0.455
7/8 0.895 1-7/16 1.438 1.394 1.660 1.589 37/64 0.604 0.531
1 1.022 1-5/8 1.625 1.575 1.876 1.796 43/64 0.700 0.591
1-1/8 1.149 1-13/16 1.812 1.756 2.093 2.002 3/4 0.780 0.658
1-1/4 1.277 2 2.00 1.938 2.309 2.209 27/32 0.876 0.749
1-3/8 1.404 2-3/16 2.188 2.119 2.526 2.416 29/32 0.940 0.810
1-1/2 1.531 2-3/8 2.375 2.300 2.742 2.622 1 1.036 0.902
1-3/4 1.785 2-3/4 2.750 2.662 3.175 3.035 1-5/32 1.196 1.054
2 2.039 3-1/8 3.125 3.025 3.608 3.449 1-11/32 1.388 1.175
2-1/4 2.305 3-1/2 3.500 3.388 4.041 3.862 1-1/2 1.548 1.327
2-1/2 2.559 3-7/8 3.875 3.750 4.474 4.275 1-21/32 1.708 1.479

Phosphorous Bronze Hex Nuts Dimensions

Hex Nut NB Across Corners MAX Thickness MIN Thickness MAX Across Flats MIN Across Flats
M 8 14.38 6.8 6.44 13 12.73
M 10 17.77 8.4 8.04 16 15.73
M 12 20.03 10.8 10.37 18 17.73
M 14 23.35 12.8 12.1 21 20.67
M 16 26.75 14.8 14.1 24 23.67
M 18 29.56 15.8 15.1 27 26.16
M 20 32.95 18 16.9 30 29.16
M 22 37.29 19.4 18.1 34 33
M 24 39.55 21.5 20.2 36 35
M 27 45.2 23.8 22.5 41 40
M 30 50.85 26.6 24.3 46 45
M 33 55.37 28.7 27.4 50 49
M 36 60.79 31 29.4 55 53.8
M 39 66.44 33.4 31.8 60 58.8
M 42 71.3 34 32.4 65 63.1
M 45 76.95 36 34.4 70 68.1
M 48 82.6 38 39.4 75 73.1
M 52 88.25 42 40.4 80 78.1
M 56 93.56 45 43.4 85 82.8
M 60 99.21 48 46.4 90 87.8
M 64 104.86 51 49.1 95 92.8
M 68 110.51 54 52.1 100 97.8
M 72 x 6 116.16 58 56.1 105 102.8
M 76 x 6 121.81 61 59.1 110 107.8
M 80 x 6 127.46 64 62.1 115 112.8

Phosphorous Bronze Flat Washer Dimensions

Bolt Size USS SAE
OD (in.) ID (in.) Thickness OD (in.) ID (in.) Thickness
1/8 (#6) – – – 0.375 0.156 .036/.065
5/32 (#8) – – – 0.438 0.188 .036/.065
3/16 (#10) 0.560 0.250 .036/.065 0.500 0.220 .036/.065
7/32 (#12) – – – 0.562 0.250 .051/.080
1/4 (#14) 0.734 0.312 .051/.080 0.625 0.281 .051/.080
5/16 0.875 0.375 .064/.104 0.688 0.344 .051/.080
3/8 1.000 0.438 .064/.104 0.812 0.406 .051/.080
7/16 1.250 0.500 .064/.104 0.922 0.469 .051/.080
1/2 1.375 0.562 .086/.132 1.062 0.531 .074/.121
9/16 1.469 0.625 .086/.132 1.156 0.594 .074/.121
5/8 1.750 0.688 .108/.160 1.312 0.656 .074/.121
3/4 2.000 0.812 .122/.177 1.469 0.812 .108/.160
7/8 2.250 0.938 .136/.192 1.750 0.938 .108/.160
1 2.500 1.062 .136/.192 2.000 1.062 .108/.160
1 1/8 2.750 1.250 .136/.192 2.250 1.250 .108/.160
1 1/4 3.000 1.375 .136/.192 2.500 1.375 .136/.192
1 3/8 3.250 1.500 .153/.213 2.750 1.500 .136/.213
1 1/2 3.500 1.625 .153/.213 3.000 1.625 .153/.213
1 5/8 3.750 1.750 .153/.213 – – –
1 3/4 4.000 1.875 .153/.213 – – –
1 7/8 4.250 2.000 .153/.213 – – –
2 4.500 2.125 .153/.213 – – –
2 1/4 4.750 2.375 .193/.248 – – –
2 1/2 5.000 2.625 .210/.280 – – –
2 3/4 5.250 2.875 .228/.310 – – –
3 5.500 3.125 .249/.327 – – –

Check available Sizes of Phosphorous Bronze Stud Bolt, Ask For Ready Stock of Phosphorous Bronze Fasteners in Mumbai, India.
