Xylan Coated 1014 Nuts, Xylan Coated Flat Washers, Xylan Coated 1400 Screws, Xylan Coated Fasteners, Xylan Coated 1052 Bolts, Xylan Coated Fasteners, Xylan Coated 1070 Carriage Bolts Stockist, Xylan 1424 Allen Cap Screw, Xylan Coated Anchor Bolts Supplier in Mumbai, India.
It additionally consists of niobium for stabilization in opposition to sensitization and resultant intergranular corrosion. It excels in resisting corrosion to warm sulphuric acids. It combines tremendous corrosion resistance with increased mechanical properties and comparatively clean fabrication. Its stabilization additionally minimizes carbide precipitation for the duration of welding.While it became at the start designed to be used in sulphuric acid associated industries, Xylan Coated Bolts is now a desire in a lot of industries which include the chemical, food, dye, pharmaceutical and plastics industries. In addition, this superalloy is utilized in warmth exchangers, blending tanks, metallic cleansing and pickling system and piping.
The nickel content material is at the border among a nickel alloy and stainless steel. When Xylan Coated Washers involves supplying excessive overall performance alloys to the car enterprise, our in-residence group’s revel in and matchless information will make certain that the entirety we deliver you, will meet together along with your rigorous enterprise requirements. Environmental and end-of-existence car regulation has pushed fundamental vehicle producers and exhaust-device designers to specify precise excessive overall performance alloys in contemporary-day motors. Coupled with the growing call for fuel-green engines and more pollutants controls worldwide, has create several regions of utility for these fasteners and different excessive nickel alloys we deliver.
Standard Specification For Xylan Coated Fasteners
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
|---|---|
| Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Threads | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard | ANSI – American National Standards Institute
|
| In Form of | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Surface finishing | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| Surface Coating |
|
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
Xylan Coated Fasteners Other Stock Include
| ASTM A193 Gr. B7 | ASTM A193 Gr. B7M | ASTM A193 Gr. L7M | ASTM A193 Gr. B16 | ASTM A193 Gr. L7 |
| XYLAN Coated ASTM A193 Gr. B7 Fasteners | XYLAN Coated ASTM A193 Gr. B7M Fasteners | XYLAN Coated ASTM A193 Gr. L7M Fasteners | XYLAN Coated ASTM A193 Gr. B16 Fasteners | XYLAN Coated ASTM A193 Gr. L7 Fasteners |
| XYLAN Coated ASTM A193 Gr. B7 Stud Bolts | XYLAN Coated ASTM A193 Gr. B7M Stud Bolts | XYLAN Coated ASTM A193 Gr. L7M Stud Bolts | XYLAN Coated ASTM A193 Gr. B16 Stud Bolts | XYLAN Coated ASTM A193 Gr. L7 Stud Bolts |
| XYLAN Coated ASTM A193 Gr. B7 Hex Bolt | XYLAN Coated ASTM A193 Gr. B7M Hex Bolt | XYLAN Coated ASTM A193 Gr. L7M Hex Bolt | XYLAN Coated ASTM A193 Gr. B16 Hex Bolt | XYLAN Coated ASTM A193 Gr. L7 Hex Bolt |
| XYLAN Coated ASTM A193 B7 Socket Head Cap Screw | XYLAN Coated ASTM A193 B7M Socket Head Cap Screw | XYLAN Coated ASTM A193 Gr. L7M Socket Head Cap Screw | XYLAN Coated ASTM A193 Gr. B16 Socket Head Cap Screw | XYLAN Coated ASTM A193 Gr. L7 Socket Head Cap Screw |
| XYLAN Coated ASTM A193 Gr. B7 Hex Nut | XYLAN Coated ASTM A193 Gr. B7M Hex Nut | XYLAN Coated ASTM A193 Gr. L7M Hex Nut | XYLAN Coated ASTM A193 Gr. B16 Hex Nut | XYLAN Coated ASTM A193 Gr. L7 Hex Nut |
Various Types Of Xylan Coated Fasteners

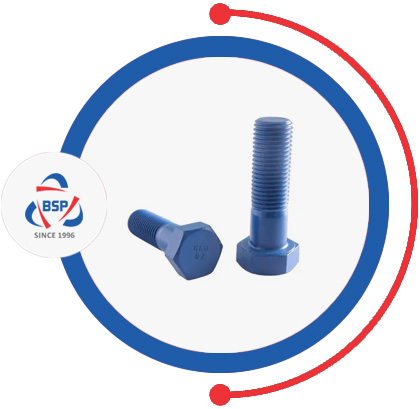

Xylan Coated Bolts
- Xylan Coated Bolt
- Xylan Coated Hex Head Bolts
- Xylan Coated Hex Bolts
- Xylan Coated Heavy Hex Bolts

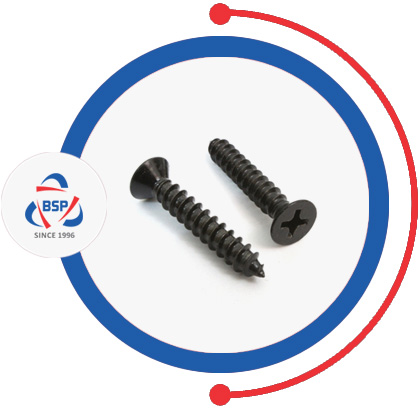

Xylan Coated Screw
- Xylan Coated Hex Cap Screws
- Xylan Coated q Set Screws
- Xylan Coated Screw
- Xylan Coated Socket Head Cap Screw
- Xylan Coated Allen Cap Screw

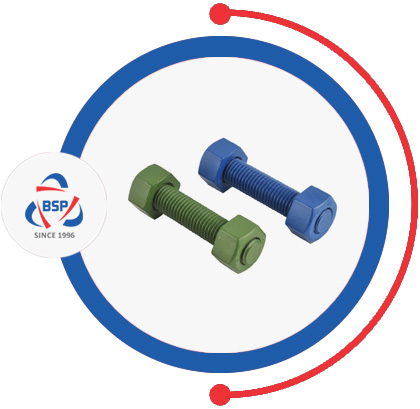

Xylan Coated Stud Bolts
- Xylan Coated Threaded Stud Bolts
- Xylan Coated Stud Bolts
- Xylan Coated Bolts
- Xylan Coated Stud
View Size Table Of Xylan Coated Fasteners, We have Global sales network for Xylan Coated Stud Bolts, Wide Stockist Of Xylan Coated Nuts, Bolts, Washers In India.
Xylan Coated Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
Dimensions Of Xylan Coated Bolts
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNESS | ACROSS THE FLATS | ACROSS BOLTS CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Xylan Grades and Their Features
| Product | Comments/Uses | Low Friction | Corrosion Resist. | Abrasion Resist. | Thickness | Cure Temp. °C/#mins (PMT) | Working Temperature | |
|---|---|---|---|---|---|---|---|---|
| Xylan 1010 | Dry-film lubricant for any wear surface to reduce friction, prevent scoring and galling, and provide secondary lubrication in the event of failure of the primary (conventional) lubricant. In addition to its low coefficient of friction (0.02-0.10), Xylan 1010 has good release properties, good chemical and abrasion resistance, and operates at temperatures up to 500 ̊F/260 ̊C continuous (550 ̊F/285 ̊C intermittent). | 10 | 4 | 3 | 20 ± 5 m | 220-345/ 20-5min | -195°C to +260°C | |
| Xylan 1014 | Similar to Xylan 1010, but with significantly more bonding resin relative to its content of polytetrafluoroethylene (PTFE) lubricant. This provides a finish that is harder, more abrasion-resistant, glossier and less porous. Friction values remain low and predictable. | 8 | 5 | 4 | 20 ± 5 m | 220-345/ 20-5min | -195°C to +260°C | |
| Xylan 1052 | Dry-film lubricant formulated with PTFE and MoS2 for high-pressure, low-speed wear applications. Its unique chemistry provides dependable, bonded lubrication for bearing surfaces subjected to extreme pressures of up to 10,500 kg/cm2 (150,000 psi). Xylan 1052 operates at temperatures up to 500 ̊F/260 ̊C continuous (550 ̊F/285 ̊C intermittent). | 6 | 4 | 4 | 15 ± 5 m | 220-345/ 20-5min | -195°C to +260°C | |
| Xylan 1070 | Highly corrosion-resistant, low-friction coating designed to reduce make-up and break-out torque, even after prolonged exposure to corrosive environments. Xylan 1070 also offers good wear and abrasion resistance. | 8 | 6 | 4 | 20 ± 5 m | 220-345/ 20-5min | -195°C to +260°C | |
| Xylan 1212 | Waterborne thin-film barrier coating with excellent corrosion resistance, ideal where tolerance is critical and lubrication unnecessary. | NNS | 8 | 4 | 20 ± 5 m | 175-205/ 60-15min | -20°C to +180°C | |
| Xylan 1213 | Waterborne, dry-film lubricant designed for high-pressure/low-speed applications. When combined with Xylan 1212 offers good corrosion and abrasion resistance. | 8 | 6 | 4 | 17.5 ± 2.5 m | 205-275/ 10-5min | -20°C to +180°C | |
| Xylan 1270(1400) | A low-cost alternative to Xylan 1070 (1424), but with less lubrication. For fasteners where reduced makeup torque is not necessary. | 5 | 7 | 3 | 20 ± 5 m | 180-260/ 30-5min | -50°C to +200°C | |
| Xylan 1311 | Similar to Xylan 1331 with less PTFE. Use when abrasion resistance is more important than lubrication and/or nonwetting properties. Considered an economical single-film coating. | NNS | 9 | 8 | 22.5 ± 2.5 m | 375-400/ 15-5min | -20°C to +230°C | |
| Xylan 1331 | Dry-film lubricant with PPS and PTFE for outstanding wear/abrasion resistance. The high percentage of PTFE provides a lubricious, nonstick surface. This resin-bonded coating has excellent corrosion and chemical resistance and is virtually unaffected by any solvents up to 205 ̊C (400 ̊F). | NNS | 9 | 6 | 22.5 ± 2.5 m | 375-400/ 15-5min | -20°C to +230°C | |
| Xylan 1424 | Waterborne/VOC-compliant, highly corrosion-resistant, dry-film lubricant designed for use on any mating surface requiring lubrication. Xylan 1424 reduces make-up and break-out torque and also offers excellent chemical and abrasion resistance. Similar to Xylan 1014. | 8 | 8 | 4 | 17.5 ± 2.5 m | 205-275/ 15-5min | -20°C to +180°C | |
| Xylan 1425 | Waterborne, dry-film lubricant formulated with PTFE and MoS2 specifically for high-pressure, lowspeed wear applications. Its unique chemistry provides dependable, bonded lubrication for bearing surfaces subjected to extreme pressures up to 10,500 kg/cm2 (150,000 psi). Xylan 1425 operates well in harsh chemical environments and at temperatures up to 190 ̊C (375 ̊F). Similar to Xylan 1052. | 6 | 6 | 4 | 17.5 ± 2.5 m | 205-275/ 15-5min | -20°C to +180°C | |
| Xylan 1427 | Waterborne, low-friction, highly corrosion-resistant fastener coating designed to reduce make-up and break-out torque, even after prolonged exposure to corrosive environments. Xylan 1427 also offers excellent chemical, wear and abrasion resistance. | 6 | 8 | 4 | 17.5 ± 2.5 m | 205-275/ 15-5min | -20°C to +180°C | |
| Xylan 1514 | UV-resistant, dry-film lubricant with excellent low friction. Xylan 1514 is designed for highly visible, decorative applications where stain resistance and easy-clean properties are required. This coating also offers some corrosion and abrasion resistance and is considered the most lubricious in the series.ns, light fittings, personal-care products, radomes, I-O drives, etc. | 9 | 3 | 4 | 20 ± 5 m | 220-275/ 30-5min | -40°C to +220°C | |
| Xylan 1756 over 4289 | Multicoat FEP system, typically used for mould release and industrial bakeware. | 4 | 8 | 3 | 4289 = 15 ± 3 m 1756 = 15 ± 5 m | 375-420/ 10-5min | -195°C to +205°C | |
| Xylan 4090 | Optional primer for use under the 1000 series of coatings. Note: clear coating also known as Primer P92 | NNS | 6 | 4 | 20 ± 5 m | 220-345/ 20-5min | -195°C to +285°C | |
| Xylan 5110 | A waterborne, low-friction, dip-spin coating for applications where a particularly wide operating temperature range is required – up to 260°C (500°F). Xylan 5110 is free of all restricted heavy metals, and is available in a range of colours (excluding light shades). Typical applications include screws and threaded fasteners. | 6 | 2 | 3 | 6 ± 1 m | 220-315/ 20-5min | -195°C to +265°C | |
| Xylan 5164 | A solvent-borne, low-friction, dipspin coating that has particularly good UV resistance. This coating is often used to provide product identification as it is available in a wide range of colours, including white. Xylan 5164 is free of all restricted heavy metals. Typical applications include wood screws and threaded fasteners. | 8 | 3 | 4 | 7 ± 1 m | 220-275/ 30-5mins | -40°C to +220°C | |
| Xylan 5230 | A solvent-borne, controlled-friction dip-spin coating that has been designed particularly for the automotive industry. It offers controlled torque tension coupled with extremely good corrosion resistance and can withstand 240 hours salt-spray when applied over a phosphate pretreatment. This coating also has good resistance to all automotive fuels, lubricants and fluids. Xylan 5230 resists chipping and flaking and is easy to apply. | 3 | 7 | 3 | 7 ± 1 m | 180-260/ 30-5min | -50°C to +200°C | |
| Xylan 5250 | A solvent-borne dip-spin coating with extremely good corrosion resistance and good UV resistance. It is ideal for use in the roofing and appliance industries where general weathering resistance is required, and is available in a range of colours. Typical applications include roofing fasteners, screws, stampings and end-caps. | NNS | 7 | 3 | 7 ± 1 m | 190-220/ 30-10min | -50°C to +200°C | |
| Xylan 5270 | A solvent-borne dip-spin coating with excellent corrosion resistance. Similar to Xylan 5230, but without the low-friction properties. Xylan 5270 is available in a range of colours, including white. | 3 | 7 | 3 | 7 ± 1 m | 180-260/ 30-5min | -50°C to +200°C | |
| Xylan 5420 | A waterborne, PTFE-containing dipspin coating with excellent corrosion resistance. This coating can offer low friction and abrasion resitance properties similar to Xylan 5230, but also has improved corrosion resistance, as well as being more environmentally friendly. Xylan 5420 is low in VOCs and is free of all restricted heavy metals. Great for use on small fasteners and hardware. | 3 | 7 | 3 | 7 ± 1 m | 180-260/ 30-5min | -50°C to +200°C | |
| Xylan 5430 | A new generation of protective coatings for small fasteners and hardware. Similar to Xylan 5420 (low VOCs), but with improved UV protection. | 3 | 7 | 3 | 7 ± 1 m | 180-260/ 30-5min | -50°C to +200°C | |
| Xylan 5611 | A solvent-borne, zinc-rich coating that gives sacrificial anodic protection against corrosion. Xylan 5611 offers excellent corrosion and abrasion resistance. It is available in a silver-grey colour, and can also be used as a primer for other Xylan coatings. Xylan 5611 is widely used in the roofing and appliance industries for the bulk application of items such as threaded fasteners, screws, stampings and end-caps. | NNS | 8 | 6 | 7 ± 1 m | 205-220/ 10-5min | -55°C to +175°C | |
Check available Sizes of Xylan Coated Stud Bolt, Ask For Ready Stock of Xylan Coated Fasteners in Mumbai, India.
BAGODA
Quick Contact
Xylan Coated Fasteners Torque Chart
| Torque Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
ASTM A453 Gr 660 | ASTM A453 Gr 660 | ||||||
| #2 | 56 | 2.5 | 2.6 | ||||
| 64 | 3.0 | 3.2 | |||||
| #3 | 48 | 3.9 | 4.0 | ||||
| 56 | 4.4 | 4.6 | |||||
| #4 | 40 | 5.2 | 5.5 | ||||
| 48 | 6.6 | 6.9 | |||||
| #5 | 40 | 7.7 | 8.1 | ||||
| 44 | 9.4 | 9.8 | |||||
| #6 | 32 | 9.6 | 10.1 | ||||
| 40 | 12.1 | 12.7 | |||||
| #8 | 32 | 19.8 | 20.7 | ||||
| 36 | 22.0 | 23.0 | |||||
| #10 | 24 | 22.8 | 23.8 | ||||
| 32 | 31.7 | 33.1 | |||||
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
| ASTM A453 Gr 660 | ASTM A453 Gr 660 | ||||||
| 1/4 | 20 | 75.2 | 78.8 | ||||
| 28 | 94.0 | 99.0 | |||||
| 5/16 | 18 | 132 | 138 | ||||
| 24 | 142 | 147 | |||||
| 3/8 | 16 | 236 | 247 | ||||
| 24 | 259 | 271 | |||||
| 7/16 | 14 | 376 | 393 | ||||
| 20 | 400 | 418 | |||||
| 1/2 | 13 | 517 | 542 | ||||
| 20 | 541 | 565 | |||||
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | |||||
| ASTM A453 Gr 660 | ASTM A453 Gr 660 | ||||||
| 9/16 | 12 | 682 | 713 | ||||
| 18 | 752 | 787 | |||||
| 5/8 | 11 | 1110 | 1160 | ||||
| 18 | 1244 | 1301 | |||||
| 3/4 | 10 | 1530 | 1582 | ||||
| 16 | 1490 | 1558 | |||||
| 7/8 | 9 | 2328 | 2430 | ||||
| 14 | 2318 | 2420 | |||||
| 1 | 8 | 3440 | 3595 | ||||
| 14 | 3110 | 3250 | |||||
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Foot-Pounds | |||||
| ASTM A453 Gr 660 | ASTM A453 Gr 660 | ||||||
| 1 1/8 | 7 | 413 | 432 | ||||
| 12 | 390 | 408 | |||||
| 1 1/4 | 7 | 523 | 546 | ||||
| 12 | 480 | 504 | |||||
| 1 1/2 | 6 | 888 | 930 | ||||
| 12 | 703 | 732 | |||||
Xylan Coated Fasteners Weight Chart
| AS PER IS 1363/67 MM THREADS | ||||||||||
| FOR 100 NOS APPROXIMATE WEIGHT IN KGS | ||||||||||
| LENGTH | Stainless Steel Fasteners DIAMETER | |||||||||
| M 6 | M 5 | M 8 | M 12 | M 10 | M 14 | M 18 | M 22 | M 16 | M 20 | |
| 16 mm | 0.743 | 0.448 | 1.590 | 3.211 | ||||||
| 20 mm | 0.812 | 0.598 | 1.711 | 4.892 | 3.411 | |||||
| 25 mm | 0.897 | 0.660 | 1.871 | 5.252 | 3.660 | 8.170 | ||||
| 30 mm | 1.010 | 0.737 | 2.070 | 5.574 | 3.912 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 1.120 | 0.804 | 2.271 | 5.974 | 4.223 | 10.000 | 16.026 | 11.416 | 19.608 | |
| 40 mm | 1.230 | 0.881 | 2.470 | 6.410 | 4.533 | 10.288 | 16.667 | 12.107 | 20.747 | |
| 45 mm | 1.340 | 0.958 | 2.671 | 6.859 | 4.840 | 10.504 | 17.241 | 12.821 | 21.739 | |
| 50 mm | 1.450 | 1.030 | 2.870 | 7.299 | 5.155 | 11.261 | 17.857 | 28.409 | 13.624 | 22.727 |
| 55 mm | 1.560 | 3.071 | 7.740 | 5.464 | 11.628 | 18.868 | 30.120 | 14.409 | 23.810 | |
| 60 mm | 1.670 | 3.270 | 8.183 | 5.774 | 12.255 | 20.000 | 32.051 | 15.244 | 25.126 | |
| 65 mm | 1.781 | 3.472 | 8.621 | 6.083 | 12.626 | 21.008 | 34.014 | 16.026 | 26.455 | |
| 70 mm | 1.890 | 3.671 | 9.058 | 6.394 | 12.987 | 22.124 | 35.461 | 16.835 | 27.778 | |
| 75 mm | 2.000 | 3.873 | 9.506 | 6.702 | 13.228 | 23.256 | 39.063 | 17.606 | 29.070 | |
| 80 mm | 2.111 | 4.072 | 10.000 | 7.013 | 13.889 | 24.510 | 40.000 | 18.248 | 30.303 | |
| 90 mm | 4.472 | 10.917 | 7.634 | 14.925 | 26.042 | 41.667 | 19.841 | 33.113 | ||
| 100 mm | 4.873 | 11.820 | 8.251 | 16.340 | 27.778 | 46.296 | 21.459 | 35.714 | ||
| 110 mm | 12.723 | 8.881 | 17.730 | 31.250 | 47.170 | 23.041 | 38.168 | |||
| 120 mm | 13.624 | 9.506 | 18.797 | 32.895 | 50.000 | 24.631 | 40.984 | |||
| 130 mm | 14.535 | 10.101 | 20.000 | 34.722 | 52.632 | 26.316 | 43.478 | |||
| 140 mm | 15.432 | 10.707 | 20.833 | 35.461 | 55.556 | 27.933 | 46.296 | |||
| 150 mm | 16.340 | 11.312 | 22.222 | 37.594 | 58.824 | 29.412 | 48.544 | |||
| 160 mm | 17.241 | 11.905 | 24.272 | 40.984 | 61.728 | 31.056 | 50.505 | |||
| 170 mm | 18.116 | 12.500 | 64.935 | 32.680 | 53.191 | |||||
| 180 mm | 19.011 | 13.123 | 26.882 | 67.568 | 34.247 | 55.556 | ||||
| 190 mm | 19.920 | 13.736 | 70.423 | 35.971 | 58.140 | |||||
| 200 mm | 20.833 | 14.327 | 29.586 | 49.020 | 73.529 | 37.594 | 60.976 | |||
| 220 mm | 22.624 | 15.528 | 79.365 | 40.650 | 65.789 | |||||
| 240 mm | 24.510 | 16.722 | 84.746 | 43.860 | 71.429 | |||||
| 250 mm | 25.381 | 17.301 | 87.719 | 45.455 | 74.627 | |||||
| 260 mm | 26.316 | 17.921 | 90.909 | 47.170 | 76.923 | |||||
| 280 mm | 28.090 | 19.157 | 98.039 | 50.505 | 81.967 | |||||
| 300 mm | 29.940 | 20.325 | 104.167 | 53.763 | 87.719 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
Ready Stock Xylan Coated Fasteners
- Xylan Coated Flat Washers
- Xylan 1052 Fender Washer
- Xylan Coated Lock Nut
- Xylan Coated Class C Bolts
- NitrXylan Coatedonic Customized Washer
- Xylan Coated Concrete Screw
- Xylan Coated Heavy Hex Nuts
- Xylan 1424 Double Ended Stud
- Xylan Coated Hex Set Screw Manufacturer
- Xylan Coated 1331 Hexagonal Washer
- Xylan Coated Carriage Bolt Stockist
- Xylan Coated Fasteners
- Xylan Coated Machine Bolt
- Xylan Coated Allen Cap Screw
- Xylan Coated Acorn Nuts
- Xylan Coated Nitronic Dock Washer Stockholder
- Xylan 1070 Foundation Bolts Manufacturer
- Xylan 4090 Square Nuts
- Xylan Coated Hex Head Bolt
- Xylan Coated T-Head Bolts
- Xylan Coated Plain Washer Supplier in Mumbai
- Xylan Coated Self Locking Nuts
- Xylan Coated Fasteners
- Xylan Coated 1425 Tooth Lock Washer
- Xylan 5164 Washers
- Xylan Coated Wing Nuts
- Xylan Coated Hex Head Bolts
- Xylan Coated 1014 Bolts
- Xylan 1000 Threaded Rod
- Xylan Coated Elevator Bolt
- Xylan Coated Nuts
- Xylan Coated 1010 Coupling Nut
- Xylan Coated Nitronic Stud Bolts
- Xylan Coated Heavy Hex Bolts
- Xylan 1514 Split / Lock Washer
- Xylan Coated Countersunk Washer
- Xylan Coated Tie Rods
- Xylan Coated Nitronic Fasteners
- Xylan Coated Structural Bolts
- Xylan 5230 Nitronic Flange Bolt
- Xylan Coated Hex Washers
- Xylan 1052 Stud Bolts
- Xylan 1514 D Ogee Washer
- Xylan Coated 1010 Eye Bolts
- Xylan Coated Anchor Bolts
- Xylan Coated Machine Fasteners Exporter
- Xylan Coated Wing Nuts
- Xylan Coated 1010 Screws Distributor
- Xylan Coated Hex Domed Cap Nuts
Xylan Coated Fasteners Chemical Composition
| Nitronic 32 / 40 / 50 /60 | |
| Carbon | 0.15 max |
| Chromium | 16.5 – 19.5 |
| Iron | Balance |
| Manganese | 11 – 14 |
| Nickel | 0.5 – 2.5 |
| Nitrogen | 0.2 – 0.45 |
| Phosphorus | 0.06 max |
| Silicon | 1 max |
| Sulphur | 0.03 max |
Xylan Coated Fasteners Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 883 MPa | 128000 psi |
| Tensile strength, yield (@0.2%) | 745 MPa | 108000 psi |
| Elongation at break (in 50 mm) | 56% | 56% |
| Modulus of elasticity (typical for stainless steel) | 200 GPa | 29000 ksi |
