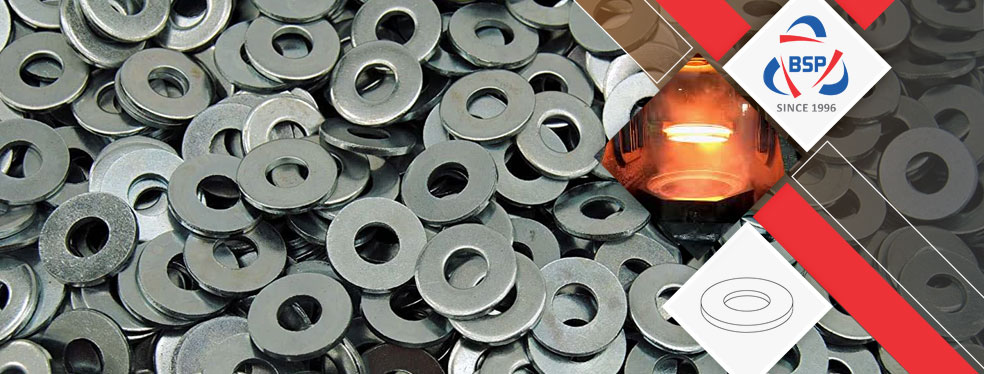

UNS N08825 Fender Washer, Incoloy 825 Split Washers, Incoloy® Alloy 825 Tooth Lock Washer Stockist, Alloy 825 Ogee Washers, Alloy 825 Dome Washers, Nickel Alloy 825 Square Washer, Incoloy 825 Lock Washers, 2.4858 Belleville Washers Supplier in Mumbai, India.
This nickel alloy turned into designed for provider temperatures from cryogenic to extended temperatures within the variety of 2000° F. It is non-magnetic, has terrific mechanical properties, and provides the appropriate aggregate of excessive strength and top weldability beneath a huge variety of temperatures. There isn't any want for put up weld warmness treatment, however, thorough cleansing after welding is important for maximum corrosion resistance, in any other case there's the danger of infection and embrittlement. Incoloy Alloy WNR 2.4858 Split Washers is utilized in Chemical industry, Aerospace, Heat treating industry, Pulp and paper industry, Food processing, Nuclear Engineering, and Gas turbine components.
The excessive nickel content material permits it to preserve good sized resistance beneath decreasing situations, makes it proof against corrosion by means of having the aid of using some of natural and inorganic compounds, and offers it terrific resistance to chloride-ion pressure-corrosion cracking and additionally offers terrific resistance to alkaline solutions. Typical applications of this nickel alloy encompass the chemical, pulp and paper, aerospace, nuclear engineering and warmth treating industries.It is Resistant to a huge variety of corrosive media, Virtually proof against chlorine ion pressure corrosion cracking, Non-magnetic, Excellent mechanical properties, High strength and top weldability beneath a huge variety of temperatures. Nickel Alloy 825 Slot Washers is a nickel-chromium alloy used for applications that require corrosion and excessive temperature resistance.
Material Specification Chart of Incoloy 825 Washers
| Specification | ASTM B425 / ASME SB425 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Washer | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Washers | DIN 125A, DIN 125B, DIN 127B, DIN 137B, DIN 6797A, DIN 6797J, ISO 7089, DIN 7980, DIN 127 B, IS 2016, ASTM F436M, ASME B18.13, ASME B18.21.1, ASME B18.22.1, ASME B18.23.1 |
| Form of Washers | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Washers | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Washers | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Washers | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Washers Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Types | Plain / Flat Washer, Spring Washers, Dome Washer, Hexagonal Washer, Square Washer, Dome Tooth Washer, Countersunk Washer, Tooth Lock Washer, Dock Washer, Fender Washer, Ogee Washer, Hex Washers, Split / Lock Washer, Customized Washer, Tab Washers |
Various Types Of Incoloy 825 Washers
Incoloy 825 Flat Washers
- Alloy 825 Flat Washer
- ASTM B425 Incoloy 825 Thick Flat Washer
- ASME SB425 Incoloy Alloy 825 Knurled Flat Washer
- UNS N08825 Plain Washer
- 2.4858 Flat Washer
- Incoloy 825 Thin Flat Washer
Incoloy 825 Ogee Washers
- Incoloy 825 Thick Ogee Washer
- UNS N08825 Ogee Washer
- Alloy 825 Ogee Washer
- ASME SB425 Incoloy Alloy 825 Thin Ogee Washer
- 2.4858 Ogee Washer
- ASTM B425 Incoloy 825 Ogee Washer
Incoloy 825 Lock Washers
- Nickel Alloy 825 Lock Washer
- Alloy 825 Lock Washer
- 2.4858 Internal Tooth Lock Washer
- ASTM B425 Incoloy 825 Heavy Duty Lock Washers
- UNS N08825 Lock Washer
- ASME SB425 Incoloy Alloy 825 Split Lock Washer
Incoloy 825 Spring Washers
- Alloy 825 Spring Washers
- ASTM B425 Incoloy 825 Spring Washer
- 2.4858 Helical Spring Washer
- ASME SB425 Incoloy Alloy 825 Flat Spring Washer
- UNS N08825 Spring Washers
- Alloy 825 Wave Spring Washer
Incoloy 825 Star Washers
- Incoloy 825 External Star Washer
- 2.4858 Spring Washer
- UNS N08825 Internal Star Washer
- Alloy 825 Star Spring Washer
- ASME SB425 Incoloy Alloy 825 Spring Washer
- ASTM B425 Incoloy 825 Spring Washer
Incoloy 825 Fender Washers
- Alloy 825 Fender Washer
- 2.4858 Fender Washer
- ASTM B425 Incoloy 825 Standard Fender Washer
- UNS N08825 Heavy Duty Fender Washer
- ASME SB425 Incoloy Alloy 825 Fender Washer
- Incoloy 825 Spring Steel Fender Washer
Equivalent Grades of Incoloy 825 Washers
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo |
View Size Table Of Incoloy 825 Washers, We have Global sales network for Incoloy 825 Plain Washer, Wide Stockist Of Werkstoff No 2.4858 Spring Washers In India.
Size Chart of Incoloy 825 Washers
| Size | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
|
| #2 | – | – | – | 3/32″ | 1/4″ | 0.020″ |
| #4 | – | – | – | 1/8″ | 5/16″ | 0.032″ |
| #6 | – | – | – | 5/32″ | 3/8″ | 0.049″ |
| #8 | – | – | – | 3/16″ | 7/16″ | 0.049″ |
| #10 | – | – | – | 7/32″ | 1/2″ | 0.049″ |
| #12 | – | – | – | 1/4″ | 9/16″ | 0.065″ |
| 1/4″ | 5/16″ | 0.734″ | 0.065″ | 9/32″ | 5/8″ | 0.065″ |
| 5/16″ | 3/8″ | 7/8″ | 0.083″ | 11/32″ | 11/16″ | 0.065″ |
| 3/8″ | 7/16″ | 1″ | 0.083″ | 13/32″ | 13/16″ | 0.065″ |
| 7/16″ | 1/2″ | 1-1/4″ | 0.083″ | 15/32″ | 15/16″ | 0.065″ |
| 1/2″ | 9/16″ | 1-3/8″ | 0.109″ | 17/32″ | 1-1/16″ | 0.095″ |
| 9/16″ | 5/8″ | 1-15/32″ | 0.109″ | 19/32″ | 1-5/32″ | 0.095″ |
| 5/8″ | 11/16″ | 1-3/4″ | 0.134″ | 21/32″ | 1-5/16″ | 0.095″ |
| 3/4″ | 13/16″ | 2″ | 0.148″ | 13/16″ | 1-15/32″ | 0.134″ |
| 7/8″ | 15/16″ | 2-1/4″ | 0.165″ | 15/16″ | 1-3/4″ | 0.134″ |
| 1″ | 1-1/16″ | 2-1/2″ | 0.165″ | 1-1/16″ | 2″ | 0.134″ |
| 1-1/8″ | 1-1/4″ | 2-3/4″ | 0.165″ | – | – | – |
| 1-1/4″ | 1-3/8″ | 3″ | 0.165″ | – | – | – |
| 1-3/8″ | 1-1/2″ | 3-1/4″ | 0.180″ | – | – | – |
| 1-1/2″ | 1-5/8″ | 3-1/2″ | 0.180″ | – | – | – |
| 1-5/8″ | 1-3/4″ | 3-3/4″ | 0.180″ | – | – | – |
| 1-3/4″ | 1-7/8″ | 4″ | 0.180″ | – | – | – |
| 2″ | 2-1/8″ | 4-1/2″ | 0.213″ | – | – | – |
Check available Sizes of ASME SB 425 Incoloy 825 Washers, Ask For Ready Stock of UNS N08825 Washers in Mumbai, India.
BAGODA
Quick Contact
Dimensions of Alloy 825 Spring Washer
| NOM SIZE | Inner Dia (d) Basic Tol (+) | Outer Dia (d1) Max | WIDTH (b) Basic Tol (+ or -) | THICKNESS (S) Basic Tol (+ or -) | Weight per 1000 in Kgs | |||
| 3 | 3.1 | 0.3 | 6.2 | 1.3 | 0.1 | 0.8 | 0.1 | 0.11 |
| 4 | 4.1 | 0.3 | 7.6 | 1.5 | 0.1 | 0.9 | 0.1 | 0.18 |
| 5 | 5.1 | 0.3 | 9.2 | 1.8 | 0.1 | 1.2 | 0.1 | 0.36 |
| 6 | 6.1 | 0.4 | 11.8 | 2.5 | 0.15 | 1.6 | 0.1 | 0.83 |
| 8 | 8.1 | 0.4 | 14.8 | 3 | 0.15 | 2 | 0.1 | 1.60 |
| 10 | 10.2 | 0.5 | 18.1 | 3.5 | 0.2 | 2.2 | 0.15 | 2.53 |
| 12 | 12.2 | 0.5 | 21.1 | 4 | 0.2 | 2.5 | 0.15 | 3.82 |
| 14 | 14.2 | 0.5 | 24.1 | 4.5 | 0.2 | 3 | 0.15 | 6.01 |
| 16 | 16.2 | 0.8 | 27.4 | 5 | 0.2 | 3.5 | 0.2 | 8.91 |
| 18 | 18.2 | 0.8 | 29.4 | 5 | 0.2 | 3.5 | 0.2 | 9.73 |
| 20 | 20.2 | 1 | 33.6 | 6 | 0.2 | 4 | 0.2 | 15.20 |
| 22 | 22.5 | 1 | 35.9 | 6 | 0.2 | 4 | 0.2 | 16.50 |
| 24 | 24.5 | 1 | 40 | 7 | 0.25 | 5 | 0.2 | 26.20 |
| 27 | 27.5 | 1 | 43 | 7 | 0.25 | 5 | 0.2 | 28.70 |
| 30 | 30.5 | 1.2 | 48.2 | 8 | 0.25 | 6 | 0.2 | 44.30 |
| 33 | 33.5 | 1.2 | 55.2 | 10 | 0.25 | 6 | 0.2 | 63.00 |
| 36 | 36.5 | 1.2 | 58.2 | 10 | 0.25 | 6 | 0.2 | 67.30 |
| 39 | 39.5 | 1.2 | 61.2 | 10 | 0.25 | 6 | 0.2 | 71.70 |
| 42 | 42.5 | 1.2 | 68.2 | 12 | 0.25 | 7 | 0.25 | 111.00 |
| 45 | 45.5 | 1.2 | 71.2 | 12 | 0.25 | 7 | 0.25 | 117.00 |
| 48 | 49 | 1.5 | 75 | 12 | 0.25 | 7 | 0.25 | 123.00 |
| 52 | 53 | 1.5 | 83 | 14 | 0.25 | 8 | 0.25 | 320.00 |
Dimensions of Alloy 825 Flat Washer
| Bolt Size | USS | SAE | ||||
| OD (in.) | ID (in.) | Thickness | OD (in.) | ID (in.) | Thickness | |
| 1/8 (#6) | – | – | – | 0.375 | 0.156 | .036/.065 |
| 5/32 (#8) | – | – | – | 0.438 | 0.188 | .036/.065 |
| 3/16 (#10) | 0.560 | 0.250 | .036/.065 | 0.500 | 0.220 | .036/.065 |
| 7/32 (#12) | – | – | – | 0.562 | 0.250 | .051/.080 |
| 1/4 (#14) | 0.734 | 0.312 | .051/.080 | 0.625 | 0.281 | .051/.080 |
| 5/16 | 0.875 | 0.375 | .064/.104 | 0.688 | 0.344 | .051/.080 |
| 3/8 | 1.000 | 0.438 | .064/.104 | 0.812 | 0.406 | .051/.080 |
| 7/16 | 1.250 | 0.500 | .064/.104 | 0.922 | 0.469 | .051/.080 |
| 1/2 | 1.375 | 0.562 | .086/.132 | 1.062 | 0.531 | .074/.121 |
| 9/16 | 1.469 | 0.625 | .086/.132 | 1.156 | 0.594 | .074/.121 |
| 5/8 | 1.750 | 0.688 | .108/.160 | 1.312 | 0.656 | .074/.121 |
| 3/4 | 2.000 | 0.812 | .122/.177 | 1.469 | 0.812 | .108/.160 |
| 7/8 | 2.250 | 0.938 | .136/.192 | 1.750 | 0.938 | .108/.160 |
| 1 | 2.500 | 1.062 | .136/.192 | 2.000 | 1.062 | .108/.160 |
| 1 1/8 | 2.750 | 1.250 | .136/.192 | 2.250 | 1.250 | .108/.160 |
| 1 1/4 | 3.000 | 1.375 | .136/.192 | 2.500 | 1.375 | .136/.192 |
| 1 3/8 | 3.250 | 1.500 | .153/.213 | 2.750 | 1.500 | .136/.213 |
| 1 1/2 | 3.500 | 1.625 | .153/.213 | 3.000 | 1.625 | .153/.213 |
| 1 5/8 | 3.750 | 1.750 | .153/.213 | – | – | – |
| 1 3/4 | 4.000 | 1.875 | .153/.213 | – | – | – |
| 1 7/8 | 4.250 | 2.000 | .153/.213 | – | – | – |
| 2 | 4.500 | 2.125 | .153/.213 | – | – | – |
| 2 1/4 | 4.750 | 2.375 | .320/.248 | – | – | – |
| 2 1/2 | 5.000 | 2.625 | .210/.280 | – | – | – |
| 2 3/4 | 5.250 | 2.875 | .228/.410S | – | – | – |
| 3 | 5.500 | 3.125 | .249/.327 | – | – | – |
Weight Chart Of Incoloy Alloy 825 Washers
| APPROX. WEIGHT IN KGS FOR 100 NOS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | PLAIN PUNCHED WASHER IS:2016 |
HEAVY WASHER IS:6610 |
MACHINED WASHER IS:2016 |
SQUARE | TAPER | WASHERS | SPRING WASHER FLAT SECTION IS:3063-72 | SPRING WASHER SQUARE SECTION IS:6735-72 DIN : 7980 |
Size (Inches) | PLAIN PUNCHED WASHER BS:3410 TABLE 7 |
|||
| MACHINED | HIGH STRENGTH FRICTION GRIP |
||||||||||
| FOR CHANNELS IS:5372-75 |
FOR I-BEAM IS:5374-75 |
TYPE-B (CHANNELS) IS : 6649-85 |
TYPE-C ( I-BEAMS ) IS : 6649-85 |
||||||||
| M-3 | 0.01 | 0.01 | |||||||||
| M-4 | 0.02 | 0.02 | |||||||||
| M-5 | 0.04 | 0.04 | 0.03 | 0.03 | |||||||
| M-6 | 0.11 | 0.11 | 0.08 | 0.04 | 1/4″ | 0.21 | |||||
| M-8 | 0.20 | 0.21 | 1.10 | 1.20 | 0.16 | 0.11 | 5/16″ | 0.35 | |||
| M-10 | 0.39 | 1.60 | 0.40 | 1.00 | 1.10 | 0.25 | 0.20 | 3/8″ | 0.48 | ||
| M-12 | 0.58 | 1.90 | 0.62 | 2.00 | 2.20 | 2.00 | 1.80 | 0.38 | 0.23 | 1/2″ | 1.07 |
| M-14 | 0.82 | 0.60 | 0.38 | ||||||||
| M-16 | 1.06 | 2.90 | 1.13 | 3.40 | 3.75 | 9.00 | 8.50 | 0.89 | 0.59 | 5/8″ | 1.85 |
| M-18 | 1.27 | 0.97 | 0.66 | ||||||||
| M-20 | 1.64 | 4.40 | 1.72 | 5.80 | 6.70 | 8.50 | 8.00 | 1.52 | 1.23 | 3/4″ | 2.91 |
| M-22 | 1.75 | 7.50 | 7.00 | 1.65 | 1.36 | 7/8″ | 4.27 | ||||
| M-24 | 3.11 | 6.30 | 3.30 | 13.50 | 16.00 | 6.50 | 6.00 | 2.62 | 1.81 | 1″ | 6.13 |
| M-27 | 3.94 | 8.00 | 4.23 | 12.50 | 15.00 | 12.00 | 11.50 | 2.87 | 2.06 | 1.1/8″ | 7.69 |
| M-30 | 5.05 | 10.10 | 5.36 | 16.50 | 18.70 | 17.50 | 16.00 | 4.43 | 3.20 | 1.1/4″ | 9.90 |
| M-33 | 7.10 | 12.00 | 7.54 | 21.00 | 23.50 | 23.00 | 22.50 | 6.30 | 3.50 | ||
| M-36 | 8.73 | 14.60 | 9.20 | 25.50 | 29.20 | 26.50 | 26.00 | 6.73 | 5.25 | 1.1/2″ | 17.24 |
| M-39 | 12.60 | 16.70 | 13.30 | 28.30 | 34.50 | 7.17 | 5.61 | ||||
| M-42 | 17.50 | 20.10 | 18.30 | 11.10 | 8.00 | ||||||
| M-45 | 21.20 | 22.20 | 22.00 | 11.70 | 8.53 | ||||||
| M-48 | 28.40 | 26.00 | 29.40 | 12.30 | 9.00 | 2″ | 27.78 | ||||
| M-52 | 31.90 | 33.00 | 18.20 | ||||||||
| M-56 | 47.90 | 19.30 | |||||||||
| M-60 | 51.60 | 20.30 | |||||||||
| M-64 | 55.40 | 21.80 | |||||||||
| M-68 | 57.40 | ||||||||||
| M-72 | 63.40 | 24.00 | |||||||||
