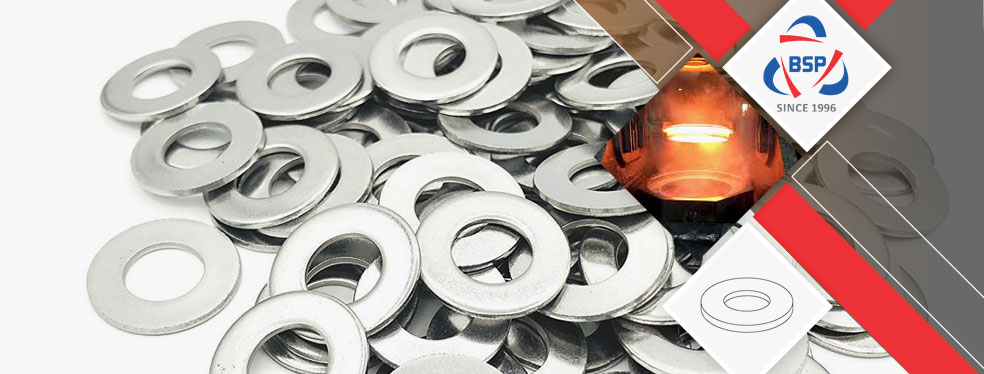

Inconel 625 Washers

Inconel 625 Flat Washers, Alloy 625 Star Washers, Inconel Alloy 625 Washers, Inconel 625 Industrial Washers, ASTM B446 Inconel 625 Spring Washers Price in India.

Bagoda Steel is a renowned seller and distributor of Inconel Alloy 625 Washers, whichis used for chemical corrosion resistance in caustic solutions. It has suitable magnetostrictive properties, and excessive electric and thermal conductivity. It has low fueloline content material and vapor pressure, and excessive electric and thermal conductivities. It is beneficial in any surroundings beneathsix hundred Degree F. Many specific industries utilize these washers; however it's far mainly beneficial to individuals who are trying to keep the purity of their products. In acid, alkaline and impartial salt solutions, Inconel Alloy UNS N06625Sealing Washersindicates suitable resistance, however in oxidizing salt solutions intense assault will occur. Thermal enlargement co-green of this alloy is at 20 Degree C – one hundred Degree C / sixty eight Degree F – 212 Degree F.

Industrial Product
Inconel 625 Washers

Alloy 625 Dome Washers, 2.4856 Belleville Washers, Alloy 625 Ogee Washers, UNS N06625 Fender Washer, Inconel 625 Lock Washers, Inconel® Alloy 625 Tooth Lock Washer Stockist, Nickel Alloy 625 Square Washer, Inconel 625 Split Washers Supplier in Mumbai, India.

+91 22 - 66151721
sales@bagodasteelproject.com
+91 9011334411

Marine Applications for this alloy: Centrifugal pumps, Pump shafts & impellers, Valve & shaft components, Cables, Fasteners, Chains, Springs, etc. It gives an extensive variety of advantages to customers such as the alloy may be hot formed in a nearly limitless wide variety of shapes, and it additionally may be cold rolled beneathright situations. Inconel Alloy WNR 2.4856 Split Washers may be further strengthened by means of having the aid of using cold working earlier than the precipitation hardening. It unearths extensive applications withinthe marine, chemical, petrochemical and shipbuilding industries.

The increased properties are received with the aid of using including aluminum and titanium to the nickel-copper base of this alloy, and with the aid of using heating beneathmanaged situations in order that debris of Ni3 (Ti, Al) are brought on in the course of the matrix. Nickel Alloy 625S lot Washers may be provided in a complete difficult temper, in which its Melting Point is 2460 Degree F (1350 Degree C) approx. The addition of aluminum and titanium to an already strong alloy adds strength and hardness. The corrosion resistance is actually the identical with exception whilst withinthe age - hardened condition. It is precipitation - hardenable nickel - copper alloy that mixes the corrosion resistance with extra strength and hardness.

Material Specification Chart of Inconel 625 Washers

Specification ASTM B446 / ASME SB446
Size M02 to M33, Custom Sizes
Length 3 mm to 200 mm
Washer UNF, BSW, BSF, METRIC, UNC, or as required
Standard of Washers DIN 125A, DIN 125B, DIN 127B, DIN 137B, DIN 6797A, DIN 6797J, ISO 7089, DIN 7980, DIN 127 B, IS 2016, ASTM F436M, ASME B18.13, ASME B18.21.1, ASME B18.22.1, ASME B18.23.1
Form of Washers Hex, Threading, Square, Round as per Gauge Etc.
Raw materials Source JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc.
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Test Certificate of Washers as per EN 10204 / 3.1 Manufacturer Test Certificate
Additional Certifications PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Production process M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC
Head drive of Washers Six-Lobe, Phillips, Phillips/Slot, Slotted etc
Packing of Washers IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Ptfe Coated Washers
Phosphate Coating
Teflon Coating
Zinc Coating
Hot Dipped Galvanizing Coating
Cadmium Coating
Xylon Coating
Types Plain / Flat Washer, Spring Washers, Dome Washer, Hexagonal Washer, Square Washer, Dome Tooth Washer, Countersunk Washer, Tooth Lock Washer, Dock Washer, Fender Washer, Ogee Washer, Hex Washers, Split / Lock Washer, Customized Washer, Tab Washers

Various Types Of Inconel 625 Washers

Inconel 625 Flat Washers
Inconel 625 Flat Washers
  • UNS N06625 Plain Washer
  • 2.4856 Flat Washer
  • Inconel 625 Thin Flat Washer
  • Alloy 625 Flat Washer
  • ASTM B446 Inconel 625 Thick Flat Washer
  • ASME SB446 Inconel Alloy 625 Knurled Flat Washer
Inconel 625 Ogee Washers
Inconel 625 Ogee Washers
  • ASTM B446 Inconel 625 Ogee Washer
  • 2.4856 Ogee Washer
  • Alloy 625 Ogee Washer
  • ASME SB446 Inconel Alloy 625 Thin Ogee Washer
  • Inconel 625 Thick Ogee Washer
  • UNS N06625 Ogee Washer
Inconel 625 Lock Washers
Inconel 625 Lock Washers
  • 2.4856 Internal Tooth Lock Washer
  • UNS N06625 Lock Washer
  • ASTM B446 Inconel 625 Heavy Duty Lock Washers
  • Alloy 625 Lock Washer
  • ASME SB446 Inconel Alloy 625 Split Lock Washer
  • Nickel Alloy 625 Lock Washer
Inconel 625 Spring Washers
Inconel 625 Spring Washers
  • ASTM B446 Inconel 625 Spring Washer
  • Alloy 625 Wave Spring Washer
  • UNS N06625 Spring Washers
  • Alloy 625 Spring Washers
  • ASME SB446 Inconel Alloy 625 Flat Spring Washer
  • 2.4856 Helical Spring Washer
Inconel 625 Star Washers
Inconel 625 Star Washers
  • 2.4856 Spring Washer
  • UNS N06625 Internal Star Washer
  • Alloy 625 Star Spring Washer
  • ASME SB446 Inconel Alloy 625 Spring Washer
  • Inconel 625 External Star Washer
  • ASTM B446 Inconel 625 Spring Washer
Inconel 625 Fender Washers
Inconel 625 Fender Washers
  • 2.4856 Fender Washer
  • ASME SB446 Inconel Alloy 625 Fender Washer
  • UNS N06625 Heavy Duty Fender Washer
  • ASTM B446 Inconel 625 Standard Fender Washer
  • Alloy 625 Fender Washer
  • Inconel 625 Spring Steel Fender Washer

Equivalent Grades of Inconel 625 Washers

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb
Washers Dimensions

View Size Table Of Inconel 625 Washers, We have Global sales network for Inconel 625 Plain Washer, Wide Stockist Of Werkstoff No 2.4856 Spring Washers In India.

Size Chart of Inconel 625 Washers

Size USS SAE
Inside Diameter
(A)		 Outside Diameter
(B)		 Thickness
(C)		 Inside Diameter
(A)		 Outside Diameter
(B)		 Thickness
(C)
#2 – – – 3/32″ 1/4″ 0.020″
#4 – – – 1/8″ 5/16″ 0.032″
#6 – – – 5/32″ 3/8″ 0.049″
#8 – – – 3/16″ 7/16″ 0.049″
#10 – – – 7/32″ 1/2″ 0.049″
#12 – – – 1/4″ 9/16″ 0.065″
1/4″ 5/16″ 0.734″ 0.065″ 9/32″ 5/8″ 0.065″
5/16″ 3/8″ 7/8″ 0.083″ 11/32″ 11/16″ 0.065″
3/8″ 7/16″ 1″ 0.083″ 13/32″ 13/16″ 0.065″
7/16″ 1/2″ 1-1/4″ 0.083″ 15/32″ 15/16″ 0.065″
1/2″ 9/16″ 1-3/8″ 0.109″ 17/32″ 1-1/16″ 0.095″
9/16″ 5/8″ 1-15/32″ 0.109″ 19/32″ 1-5/32″ 0.095″
5/8″ 11/16″ 1-3/4″ 0.134″ 21/32″ 1-5/16″ 0.095″
3/4″ 13/16″ 2″ 0.148″ 13/16″ 1-15/32″ 0.134″
7/8″ 15/16″ 2-1/4″ 0.165″ 15/16″ 1-3/4″ 0.134″
1″ 1-1/16″ 2-1/2″ 0.165″ 1-1/16″ 2″ 0.134″
1-1/8″ 1-1/4″ 2-3/4″ 0.165″ – – –
1-1/4″ 1-3/8″ 3″ 0.165″ – – –
1-3/8″ 1-1/2″ 3-1/4″ 0.180″ – – –
1-1/2″ 1-5/8″ 3-1/2″ 0.180″ – – –
1-5/8″ 1-3/4″ 3-3/4″ 0.180″ – – –
1-3/4″ 1-7/8″ 4″ 0.180″ – – –
2″ 2-1/8″ 4-1/2″ 0.213″ – – –

Check available Sizes of ASME SB 446 Inconel 625 Washers, Ask For Ready Stock of UNS N06625 Washers in Mumbai, India.

BAGODA

Quick Contact

Dimensions of Alloy 625 Spring Washer

NOM SIZE Inner Dia (d) Basic Tol (+) Outer Dia (d1) Max WIDTH (b) Basic Tol (+ or -) THICKNESS (S) Basic Tol (+ or -) Weight per 1000 in Kgs
3 3.1 0.3 6.2 1.3 0.1 0.8 0.1 0.11
4 4.1 0.3 7.6 1.5 0.1 0.9 0.1 0.18
5 5.1 0.3 9.2 1.8 0.1 1.2 0.1 0.36
6 6.1 0.4 11.8 2.5 0.15 1.6 0.1 0.83
8 8.1 0.4 14.8 3 0.15 2 0.1 1.60
10 10.2 0.5 18.1 3.5 0.2 2.2 0.15 2.53
12 12.2 0.5 21.1 4 0.2 2.5 0.15 3.82
14 14.2 0.5 24.1 4.5 0.2 3 0.15 6.01
16 16.2 0.8 27.4 5 0.2 3.5 0.2 8.91
18 18.2 0.8 29.4 5 0.2 3.5 0.2 9.73
20 20.2 1 33.6 6 0.2 4 0.2 15.20
22 22.5 1 35.9 6 0.2 4 0.2 16.50
24 24.5 1 40 7 0.25 5 0.2 26.20
27 27.5 1 43 7 0.25 5 0.2 28.70
30 30.5 1.2 48.2 8 0.25 6 0.2 44.30
33 33.5 1.2 55.2 10 0.25 6 0.2 63.00
36 36.5 1.2 58.2 10 0.25 6 0.2 67.30
39 39.5 1.2 61.2 10 0.25 6 0.2 71.70
42 42.5 1.2 68.2 12 0.25 7 0.25 111.00
45 45.5 1.2 71.2 12 0.25 7 0.25 117.00
48 49 1.5 75 12 0.25 7 0.25 123.00
52 53 1.5 83 14 0.25 8 0.25 320.00

Dimensions of Alloy 625 Flat Washer

Bolt Size USS SAE
OD (in.) ID (in.) Thickness OD (in.) ID (in.) Thickness
1/8 (#6) – – – 0.375 0.156 .036/.065
5/32 (#8) – – – 0.438 0.188 .036/.065
3/16 (#10) 0.560 0.250 .036/.065 0.500 0.220 .036/.065
7/32 (#12) – – – 0.562 0.250 .051/.080
1/4 (#14) 0.734 0.312 .051/.080 0.625 0.281 .051/.080
5/16 0.875 0.375 .064/.104 0.688 0.344 .051/.080
3/8 1.000 0.438 .064/.104 0.812 0.406 .051/.080
7/16 1.250 0.500 .064/.104 0.922 0.469 .051/.080
1/2 1.375 0.562 .086/.132 1.062 0.531 .074/.121
9/16 1.469 0.625 .086/.132 1.156 0.594 .074/.121
5/8 1.750 0.688 .108/.160 1.312 0.656 .074/.121
3/4 2.000 0.812 .122/.177 1.469 0.812 .108/.160
7/8 2.250 0.938 .136/.192 1.750 0.938 .108/.160
1 2.500 1.062 .136/.192 2.000 1.062 .108/.160
1 1/8 2.750 1.250 .136/.192 2.250 1.250 .108/.160
1 1/4 3.000 1.375 .136/.192 2.500 1.375 .136/.192
1 3/8 3.250 1.500 .153/.213 2.750 1.500 .136/.213
1 1/2 3.500 1.625 .153/.213 3.000 1.625 .153/.213
1 5/8 3.750 1.750 .153/.213 – – –
1 3/4 4.000 1.875 .153/.213 – – –
1 7/8 4.250 2.000 .153/.213 – – –
2 4.500 2.125 .153/.213 – – –
2 1/4 4.750 2.375 .320/.248 – – –
2 1/2 5.000 2.625 .210/.280 – – –
2 3/4 5.250 2.875 .228/.410S – – –
3 5.500 3.125 .249/.327 – – –

Weight Chart Of Inconel Alloy 625 Washers

APPROX. WEIGHT IN KGS FOR 100 NOS
SIZE PLAIN PUNCHED WASHER
IS:2016		 HEAVY WASHER
IS:6610		 MACHINED WASHER
IS:2016		 SQUARE | TAPER | WASHERS SPRING WASHER FLAT SECTION IS:3063-72 SPRING WASHER SQUARE SECTION IS:6735-72
DIN : 7980		 Size (Inches) PLAIN PUNCHED WASHER
BS:3410 TABLE 7
MACHINED HIGH  STRENGTH
FRICTION  GRIP
FOR
CHANNELS IS:5372-75		 FOR
I-BEAM IS:5374-75		 TYPE-B
(CHANNELS) IS : 6649-85		 TYPE-C
( I-BEAMS ) IS : 6649-85
M-3               0.01 0.01
M-4               0.02 0.02
M-5 0.04   0.04         0.03 0.03
M-6 0.11   0.11         0.08 0.04 1/4″ 0.21
M-8 0.20   0.21 1.10 1.20     0.16 0.11 5/16″ 0.35
M-10 0.39 1.60 0.40 1.00 1.10     0.25 0.20 3/8″ 0.48
M-12 0.58 1.90 0.62 2.00 2.20 2.00 1.80 0.38 0.23 1/2″ 1.07
M-14 0.82             0.60 0.38
M-16 1.06 2.90 1.13 3.40 3.75 9.00 8.50 0.89 0.59 5/8″ 1.85
M-18 1.27             0.97 0.66
M-20 1.64 4.40 1.72 5.80 6.70 8.50 8.00 1.52 1.23 3/4″ 2.91
M-22 1.75         7.50 7.00 1.65 1.36 7/8″ 4.27
M-24 3.11 6.30 3.30 13.50 16.00 6.50 6.00 2.62 1.81 1″ 6.13
M-27 3.94 8.00 4.23 12.50 15.00 12.00 11.50 2.87 2.06 1.1/8″ 7.69
M-30 5.05 10.10 5.36 16.50 18.70 17.50 16.00 4.43 3.20 1.1/4″ 9.90
M-33 7.10 12.00 7.54 21.00 23.50 23.00 22.50 6.30 3.50
M-36 8.73 14.60 9.20 25.50 29.20 26.50 26.00 6.73 5.25 1.1/2″ 17.24
M-39 12.60 16.70 13.30 28.30 34.50     7.17 5.61
M-42 17.50 20.10 18.30         11.10 8.00
M-45 21.20 22.20 22.00         11.70 8.53
M-48 28.40 26.00 29.40         12.30 9.00 2″ 27.78
M-52 31.90   33.00         18.20
M-56 47.90             19.30
M-60 51.60             20.30
M-64 55.40             21.80
M-68 57.40
M-72 63.40             24.00

Ready Stock Inconel 625 Washers

  • Inconel 625 Star Washers
  • Alloy 625 Hex Washers
  • ASTM B446 Inconel 625 Flat Washers
  • 2.4856 Machine Washer
  • Nickel Alloy 625 Spring Washers Distributor
  • Nickel Alloy 625 Round Washer
  • Alloy 625 Ogee Washer
  • Inconel Alloy 625 Washer
  • DIN 2.4856 Countersunk Washer
  • ASTM B446 Inconel 625 Washers
  • Inconel Alloy 625 Customized Washer
  • ASTM B446 Inconel 625 Wave Washer
  • 625 Inconel Split Ring Washer
  • Alloy 625 Cup Washer
  • Inconel 625 Dock Washer Stockholder
  • JIS NCF 625 Tooth Lock Washer
  • Inconel Alloy 625 Flat Washer Stockist
  • Inconel 625 Punched Washer
  • Inconel 625 Industrial Washers
  • Inconel® Alloy 625 Finishing Washers
  • Inconel® Alloy 625 Square Washer
  • Inconel 625 Spring Washers
  • 625 Inconel Belleville Washers
  • Inconel 625 Tab Washers
  • 625 Inconel Square Washer Manufacturer
  • Inconel Alloy® 625 Fender Washer
  • Nickel Alloy 625 Curved Spring Washer
  • Alloy 625 Plain Washer Supplier in Mumbai
  • Inconel 625 Customized Washer
  • Inconel 625 Tab Washer Exporter
  • 625 Inconel Spherical Washer
  • Inconel® Alloy 625 Tab Washer Manufacturer
  • Inconel 625 Spring Washers
  • Inconel 625 Dock Washer
  • Inconel Alloy 625 Industrial Washers
  • Alloy 625 Hex Washers
  • Alloy 625 Hexagonal Washer
  • Inconel 625 Hexagonal Washer
  • Alloy 625 Fender Washers
  • ASTM B446 Inconel 625 Dome Washer
  • UNS N06625 Washers
  • Inconel Alloy 625 Flat Washer
  • Inconel 625 Split / Lock Washer
  • Inconel 625 Dome Tooth Washer
  • 625 Inconel Conical Spring Washer
  • Nickel Alloy 625 Countersunk Finishing Washer
  • ASME SB446 Inconel 625 Fender Washer
  • Inconel® Alloy 625 Hex Washers
  • Nickel Alloy 625 Split Washer
  • Inconel 625 Countersunk Washer

Inconel 625 Washers Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 625 0.10 max 0.50 max 0.50 max 0.015max - 5.0 max 58.0 min 20.0 - 23.0

Alloy 625 Washers Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %
